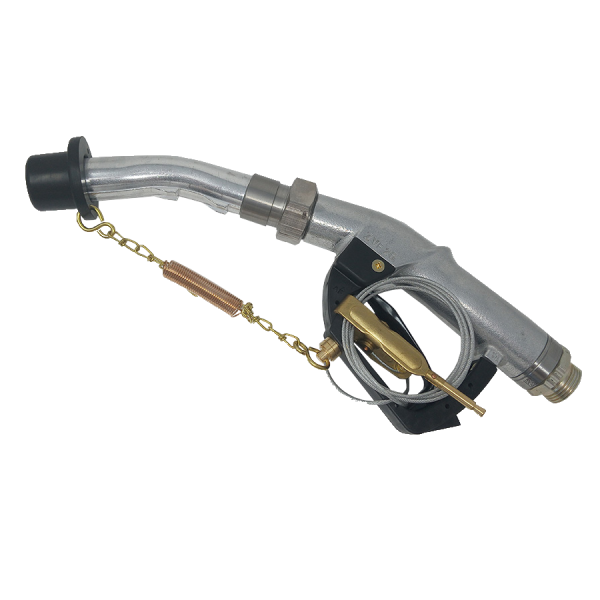

Elaflex ZVF 25, Automatic, High-Flow Aviation Fuel Dispensing Nozzle (140 lpm), ATEX Approved
Aluminium Body, Anodised Aluminium Spout, NBR Seals.
- Patented venturi type automatic shut-off with safety cut-out attitude valve.

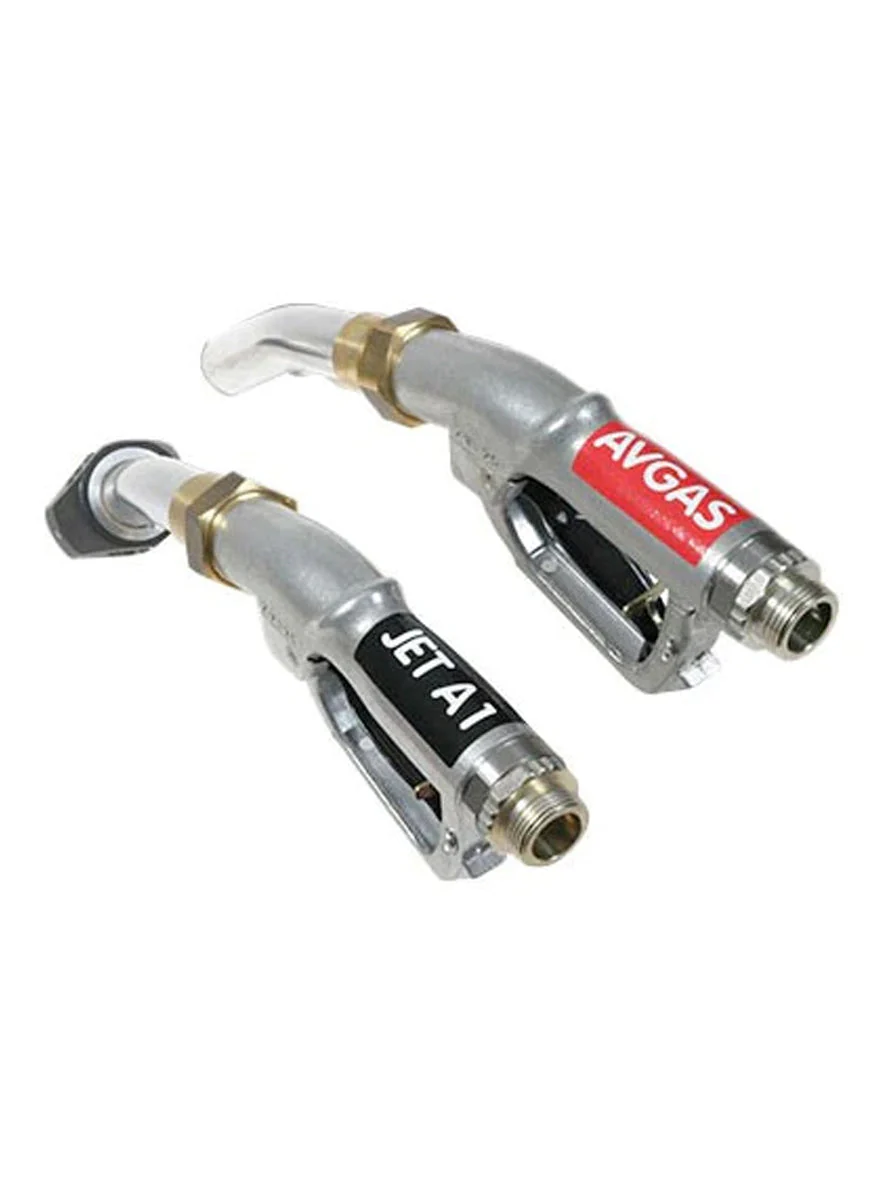

- Special type for aircraft and helicopter fuelling
- Free of copper alloys
- Strainer 100 mesh (ES 336.1) of stainless steel
- Spout assembly with threading for easy strainer control

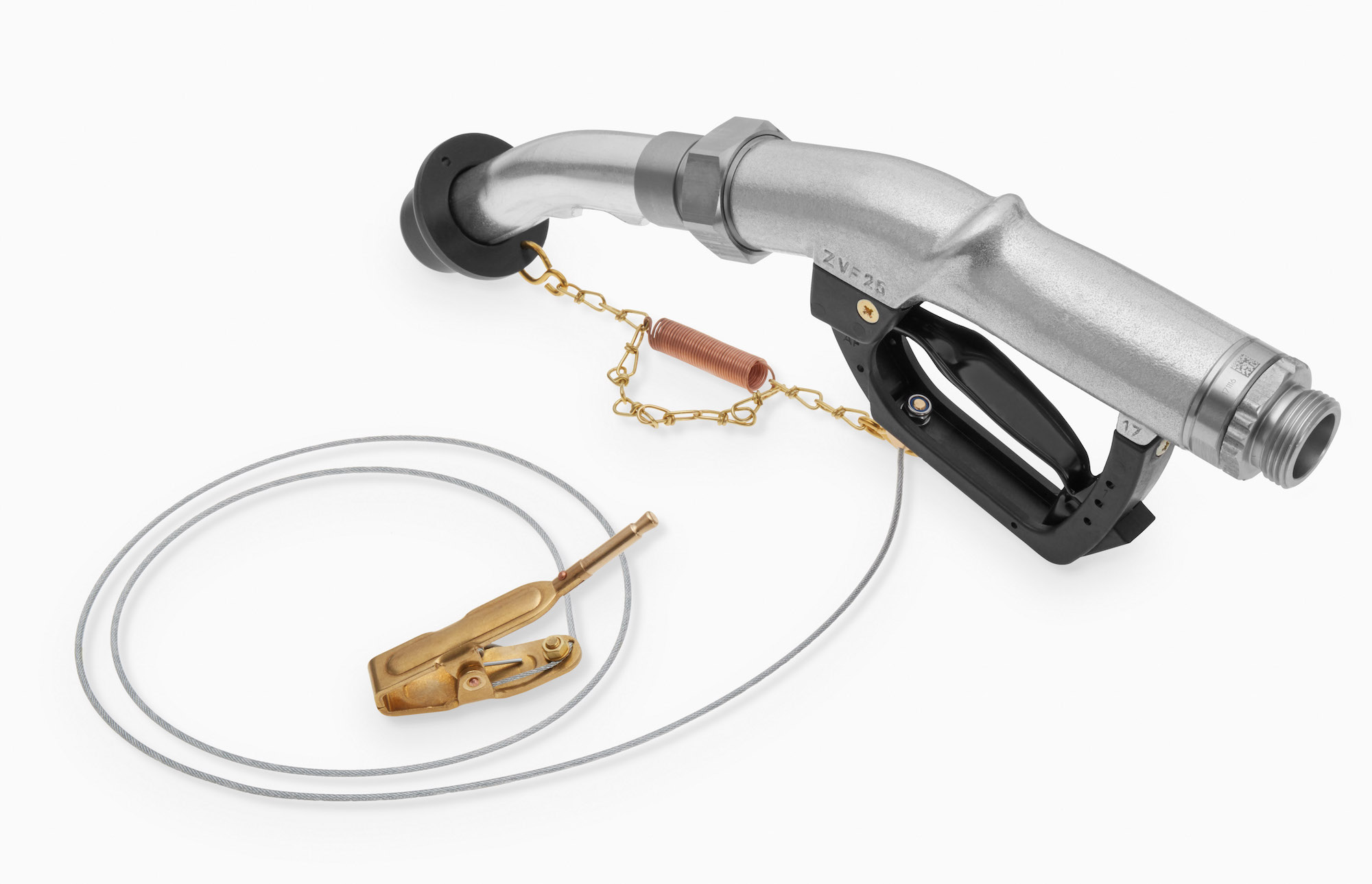

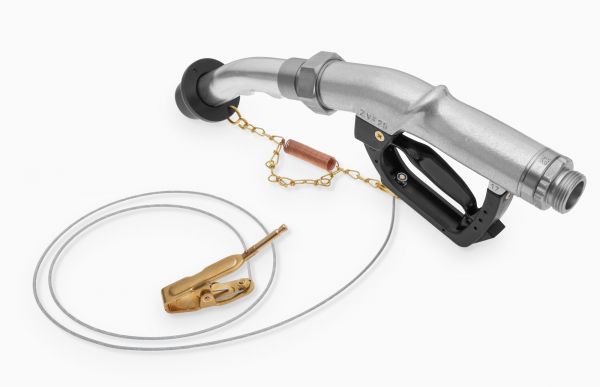

- With hole in the guard to fasten GKG and EKG.
- With check valve for wet hose delivery and swivel hose inlet
- Deadman Handle - Standard ZVA 25 3-speed lever latch but with removeable latch pin EB 280 REMOVED
- Guard of conductive PA
- Inner parts acetal resin, stainless steel, seals of NBR
Suitable For;
An automatic shut-off nozzle can only be used on pumped dispensing systems, they will not work on gravity-fed dispensing systems
Approved for use in ATEX areas - SIRA Certificate Number 03ATEX9487U, Category - Ex II 1 G
An automatic shut-off nozzle can only be used on pumped dispensing systems, they will not work on gravity-fed dispensing systems.
Please contact us if you require a price for a model not listed in the options below.
Specification| Inlet | 1" BSP Female |
| Spout Diameter | 28.5 mm |
| Trigger Catch | No, Latch pin EB 280 REMOVED |
| Swivel Included | Yes |
| Min Flow rate | 0 lpm |
| Max Flow rate | 140 lpm |
| Min Back Pressure | 7 PSI / 0.5 Bar |
| Max Back Pressure | 50 PSI / 3.5 Bar |
| Weight | 1.3 Kg |
Wetted Components| Body | Aluminium |
| Seals | NBR |
| Spring | Stainless Steel |
| Main Stem | Stainless Steel |
| Valve Seat | Acetyl (Delrin) |
| Diaphragm | NBR |
| Swivel | TBC |
Download ZVF 25 - Catalogue Page PDF
