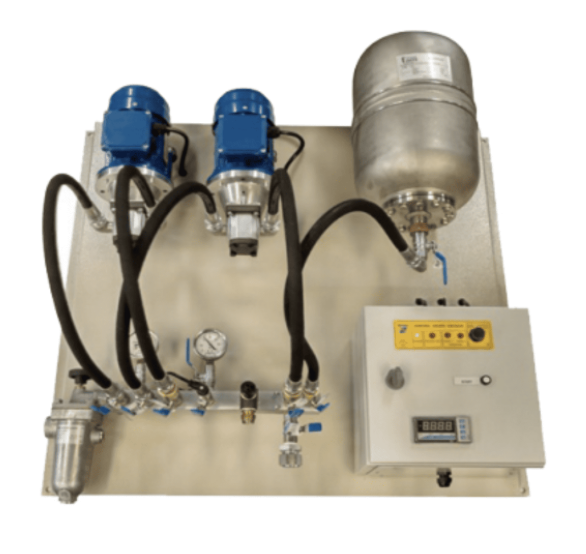

Inpro GP Twin Pump Oil Transfer Pressure Units, High Pressure
Inpro pressure units are equipment used to transfer liquid fuel such as diesel or HVO from a main tank to different consumption points through the pressurization of a line, for the supply of machinery that requires these fuels, such as generators (power generators) or burners for boilers in buildings.
There are several sizes and configurations of equipment, in which the flow rate that can control the equipment can vary, the maximum pressure at which they can work, with the possibility of redundancy in some components, and other parameters such as the type of power supply.
Twin units that duplicate critical components to increase reliability.
Application area example
Small units (from 30l/h to 1,500l/h) can be used for:
- The supply of boilers in single-family houses.
- Community of neighbors buildings
- Small installations.
And large units (from 2,000l/h to 12,000l/h) can be applied in:
- Large buildings requiring 24h/7 electricity
- Data Centers
- Hospitals
- Airports
- Malls...
Applications & Specific Features
- Multiple burner, appliances or service tanks supplied with one GP pressure unit.
- Appliances installed at different heights.
- Modulating burners when using the Inpro Oil Burner Inlet Assembly
- Oil Supply installation using ‘dead leg’ pipework. GP unit does not need external controls.
- GP units operate on an internal pressure switch only pumping fuel when required.
- Pressure regulators may be required at oil inlet to burners/appliances.
- Limited suction lift may require GP unit to be sited near the oil tank.
Accessories and Adaptations Art. Nr.
- Free voltage relay output to control from centralised Building Management System, in kit 3, 4 or 6 signals (2-thermal, motors 1 or 2 ON, low pressure and Leak safety ON).
- GSM alarm system by SMS messages, or connection to modem. Adaptation of Pressure Group for high pressure, working conditions of up to 6 Kg/cm2.
- Leak collector trays with infrared detectors (standard in GP-800 and GP-1500).
- Modifications to adapt to specifically regulated environments with tropicalised equipment or ATEX.
- Solenoid valves.
Options| Model | | GP-300 N/GE | GP-500 N/GE | GP 1500 N/GE | GP-1500 N/GE |
| Flow | L/H | 300 | 300 | 800 | 1500 |
| Connection To The Hydralic Circuit (Thread/ MM) | Suction
Drive | 3/4" | 3/4" | 1" | 1" |
| | 1/2" | 1/2" | 1/2" | 3/4" |
| Power Supply | Volts | 230/ 400 | 230 /400 | 230/ 400 | 230/ 400 |
| Motor Power | C.V | 1/2 | 1/2 | 3/4 | 1 1/2 |
| KW | 0.25 | 0.37 | 0.55 | 1.1 |
| Max Pressure | Kg CM2 | 20 | 20 | 20 | 20 |
| Motor Protection | IP | 55 | 55 | 55 | 55 |
