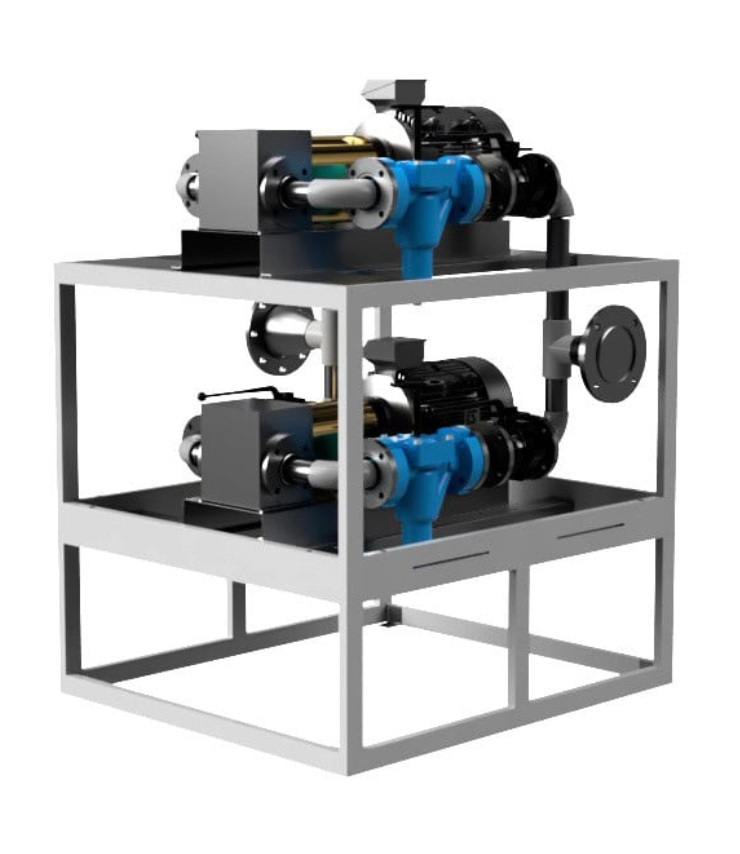

Inpro RL Bio Fuel Ring Transfer Skid
Fuel Ring Transfer Systems for feeding burners or generators (generator sets).
Normal Mode
- Normal model: flow rates from 100 l/h up to 1,200 l/h
Applications & Specific Features
- Pump for ‘Ring Main’ oil transfer systems.
- Single or multiple appliances at same height or varying height.
- Suitable for high output or modulating burners.
- For use on oil supply installations where a GP ‘dead leg’ system is not practical.
- A back pressure relief valve (overflow valve) is required to maintain adequate pressure in the ‘Ring Main’.
- Special RL units available for aggressive or heated non standard fuels.
Accessories and Adaptations
- Special non – ferrous metal free versions upon request.
- Standard motor power ready for viscosities till 38mm2/s (40ºC).
- For other, please consult. IM system to stop pumps when all burners are off (optional for RL one pump).
- Free voltage relay output to control from centralised Building Management System, in kit 3, 4 or 6 signals (2-thermal, motors 1 or 2 ON, low pressure and Leak safety ON).
- GSM alarm system by SMS messages, or connection to modem.
- Adaptation of Pressure Group for high pressure, working conditions above 6,5 Kg/cm2.
- Leak collector trays with infrared detectors (standard in RL-4 and above).
- Modifications to adapt to specifically regulated environments.
Options| Model | | RL 0 | RL 1 | RL 2 | RL 3 | RL 4 | RL5 | RL 6 | RL 7 | RL 8 | RL 9 | RL 10 |
| Max Flow | L/H | 100 | 260 | 460 | 900 | 1400 | 2100 | 3400 | 5300 | 7500 | 10500 | 12000 |
| Supply Flow | L/H | 65 | 150 | 300 | 600 | 900 | 1450 | 2300 | 3600 | 4900 | 7000 | 8000 |
| Supply Voltage | Volt | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| KW | 0.25 | 0.25 | 0.25 | 0.55 | 0.55 | 2.2 | 3 | 3 | 4 | 4 | 4 |
| Motor Power | CV | 1/3 | 1/3 | 1/3 | 3/4 | 3/4 | 3 | 4 | 4 | 5.5 | 5.5 | 5.5 |
| Motor | R.P.M | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Suction | DN 20 | DN 25 | DN 25 | DN 32 | DN 32 | DN 50 | DN 50 | DN 50 | DN 40 | DN 50 | DN 65 |
| Connection To The Hydraulic Circuit Thread | Drive | DN 20 | DN 25 | DN 25 | DN 32 | DN 32 | DN 50 | DN 50 | DN 40 | DN 40 | DN 50 | DN 50 |
| Overpressure | 1/2" F | 3/4" F | 3/4 F | 1" F | 1" F | DN 40 | DN40 | DN 40 | DN 40 | DN 40 | DN 40 |
| Max Suction | M | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Security Valve Opens At: | Bar | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| 5Motor Protection | IP | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Download Inpro RL ZW Biofuel - Datasheet PDF
