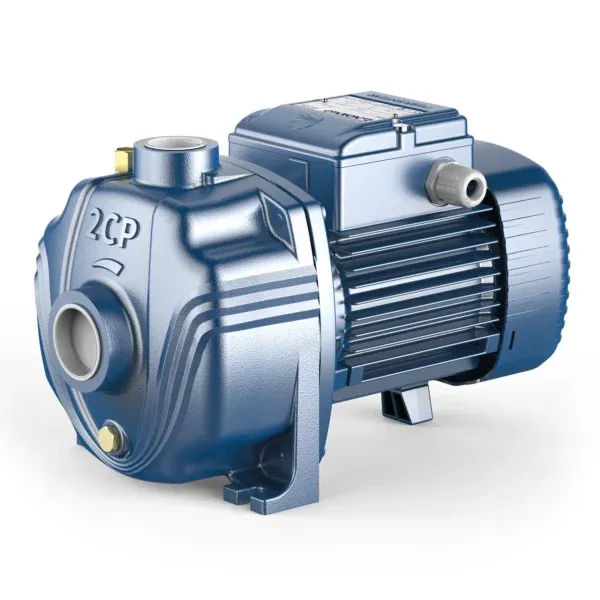

Pedrollo 2CP 25/130 Twin Impeller Centrifugal Pump
Designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. They can be used in a variety of applications thanks to their high performance and adaptability. They are an ideal choice for domestic water distribution when used with pressure tanks.
Application Limits
• Manometric suction head up to 7 m
• Liquid temperature between -10 °C and +90 °C
• Ambient temperature up to +40 °C
• Maximum working pressure 6 bar
Available Upon Request
Mechanical seal options available. Different voltage requirements 60 Hz frequency
2 Year Manufacturers Warranty
Wetted Components| Pump Body | Cast Iron (Painted) |
| Impellor Case | Cast Iron (Painted) |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Brass |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 110v50Hz, 230v50Hz, or 415v50Hz |
| kW | Various, Consult PDF Below |
| Amps | Various, Consult PDF Below |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | Various, Consult PDF Below - Max 150 lpm |
| Discharge Pressure | Various, Consult PDF Below |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 7 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | +90° Celcius |
| Min Liquid Temp | -10° Celcius |
| Max Room Temp | +40° Celcius |
| Min Room Temp | TBC |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Water |
| Ingress Protection | IP44 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
Download Pedrollo Catalogue 50Hz PDF
Download Pedrollo Catalogue 60Hz PDF
