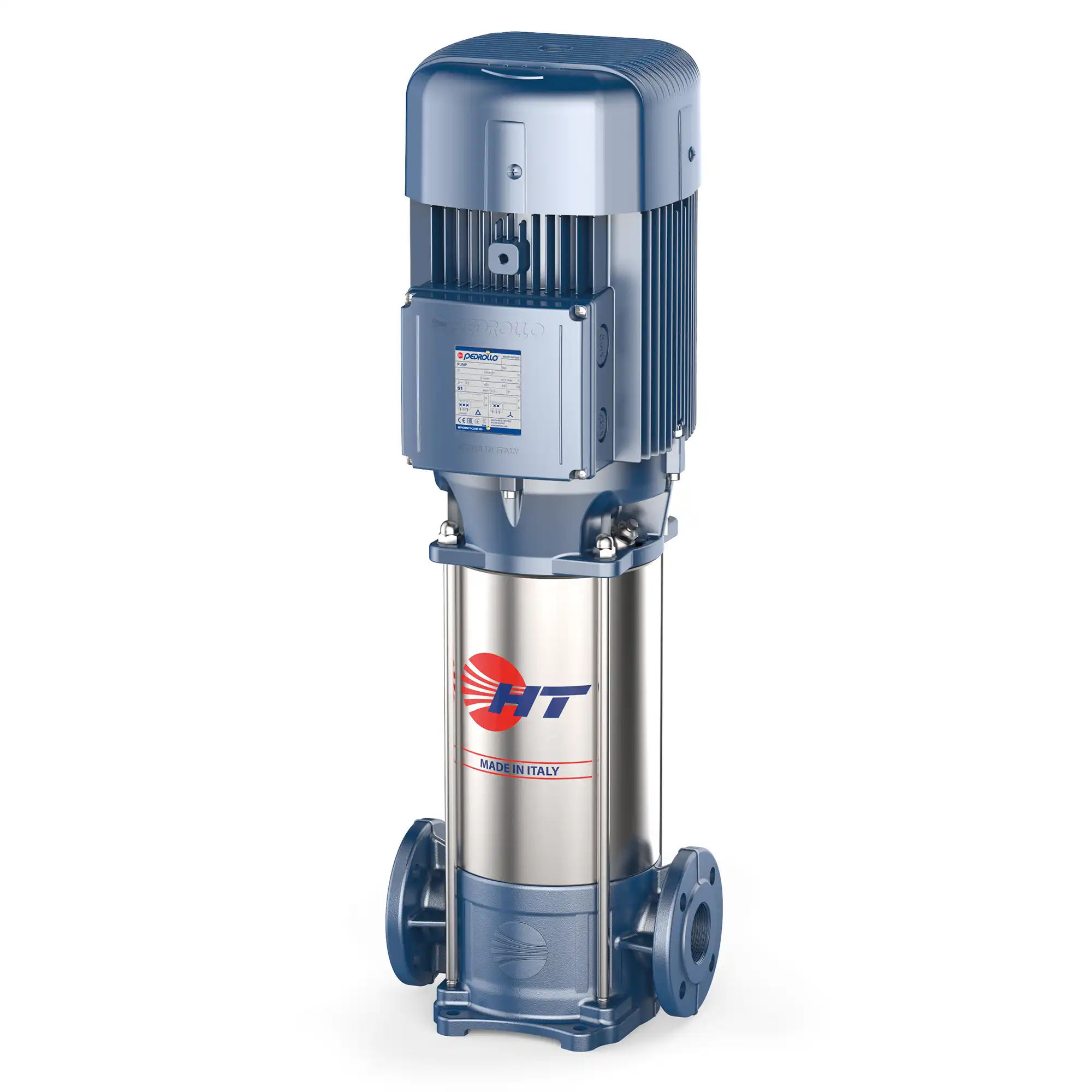

Pedrollo HT Multi-stage Centrifugal Pump
Designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Their high efficiency and adaptability to a wide variety of applications make them an ideal choice in the domestic, civil, agricultural, and industrial sectors, particularly for water distribution along pressure tanks to increase overall network pressure. Suggested uses include fire-fighting sys- tems, heavy-duty cleaning applications, industrial power washers, and irrigation.
Key Features
- Stainless steel components extend service life and en- hance efficiency.
- Multi-stage design results in exceptionally quiet oper- ation
Application Limits
- Manometric suction head up to 7 m
- Liquid temperature between +15 °C and +90 °C
- Ambient temperature up to +40 °C
- Maximum working pressure 16 bar
Available Upon Request
- Handling of liquids with higher or lower temperatures.
- Pump body with NPT threaded ports ANSI B 1.20.1
- COUNTER-FLANGE
- Pump protection kit to prevent dry running
- O-rings in EPDM or VITON (standard version in NBR)
- Different voltage requirements 60 Hz frequency
- 2 Year Manufacturers Warranty
Wetted Components| Pump Body | Cast Iron (Painted) |
| Impellor Case | Cast Iron (Painted) |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Brass |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 110v, 230v, 415v / 50Hz |
| kW | 0.37-2.2 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | 40 lpm @ 5 m head |
| Discharge Pressure | 9.0 Bar / 130.5 PSI |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 8 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 90 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 40 Celcius |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Water |
| Ingress Protection | IP44 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
