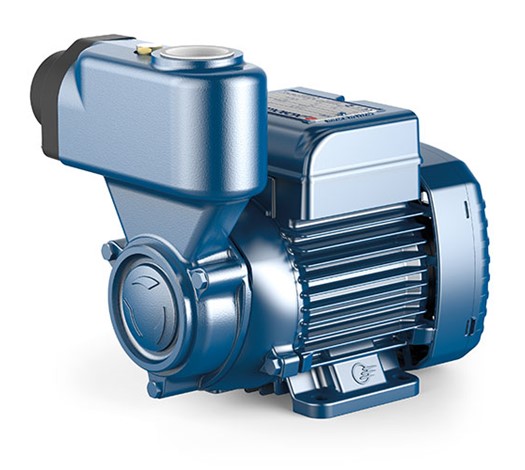

Pedrollo PKS Peripheral Pump
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their compactness, reliability and the fact that they are easy to use, they are suitable for use in domestic applications such as the distribution of water in combination with small pressure sets, for the irrigation of gardens and allotments, for drawing water from tanks and for all those other situations where air or water may be present in the water to be pumped. The pump comes complete with a flap-check valve. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
2 Year Manufacturers Warranty
Wetted Components| Pump Body | Cast Iron (Painted) |
| Impellor Case | Cast Iron (Painted) |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Brass |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 230v 50Hz (110v, or 415v upon request) |
| kW | Various, Consult PDF Below |
| Amps | Various, Consult PDF Below |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | Various, Consult PDF Below |
| Discharge Pressure | Various, Consult PDF Below |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 8 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 90 Celcius |
| Min Liquid Temp | -10 Celcius |
| Max Room Temp | 40 Celcius |
| Min Room Temp | TBC |
| Thermal Protection Y/N | Y |
| Ingress Protection | IP44 |
Options Available| Single Phase 230v | Three Phase 415v | Pedrollo Part Number | kW | lpm | Head (m) |
| PKSm 60 | | UK 41PNKS60A1 | 0.37 | 5-40 | 38-5 |
| | PKS 60 | UK 41PNKS60A | 0.37 | 5-40 | 38-5 |
| PKSm 65 | | UK 41PNKS65A1 | 0.50 | 5-50 | 50-8 |
| | PKS 65 | UK 41PNKS65A | 0.50 | 5-50 | 50-8 |
| PKSm 70 | | UK 41PMA71A1 | 0.60 | 5-50 | 62-18 |
| | PKS 70 | UK 41PTA71A | 0.60 | 5-50 | 62-18 |
| PKSm 80 | | UK 41PMA81A1 | 0.75 | 5-50 | 66-22 |
| | PKS 80 | UK 41PTA81A | 0.75 | 5-50 | 66-22 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
Download Pedrollo PKS 50 Hz High Pressure Pumps Pressure PDF
Download Pedrollo PKS 60 Hz High Pressure Pumps Pressure PDF
