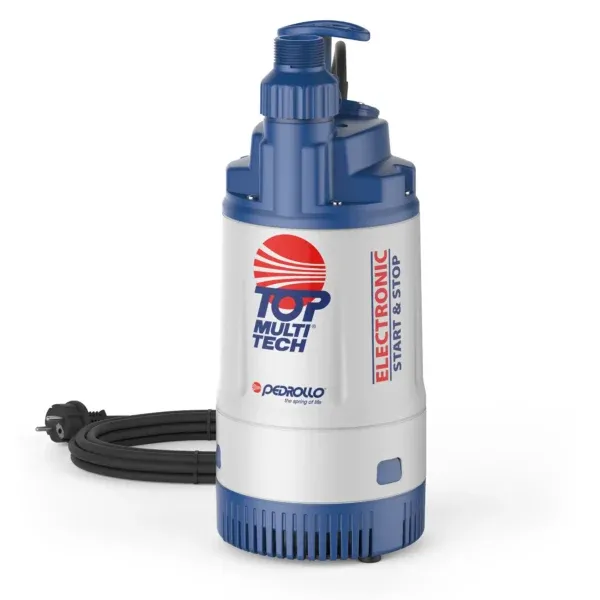

Pedrollo Top Multi-Tech Submersible Pumps for Clear Water
The Top Multi-Tech pumps are recommended for pumping clean water and liquids that are chemically non aggressive to the pump materials.
For the high performance and reliability are suitable for domestic water supply from tanks, relatively deep wells, and tanks to collect rainwater for watering by hand or feeding a irrigation systems, etc.
2 Year Manufacturers Warranty
Wetted Components| Pump Body | Technopolymer |
| Impellor Case | Noryl FE1520PW |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | TBC |
| Shaft Key / Nut | Stainless Steel 304 |
| Motor Shaft | Stainless Steel 304 |
| Bypass Valve Piston | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 50Hz |
| kW | 0.55 |
| Amps | Various, Consult PDF Below |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | 10 m |
| Bypass Valve Y/N | TBC |
| Max Flow | 120 lpm |
| Discharge Pressure | 4.0 Bar |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | Submerged |
| Inlet Fitting | NA |
| Outlet Fitting | 1.25" |
| Max Particle Tolerance | Sand |
| Max Liquid Temp | +40 C |
| Min Liquid Temp |
| Max Room Temp | |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Ingress Protection | IPX8 |
Options Available| Model | Cable Length | kW | HP | lpm | Head (m) |
| TOP MULTI TECH 2 | 10m | 0.55 | 0.75 | 10 - 80 | 5 - 40 |
| TOP MULTI TECH 3 | 10m | 0.55 | 0.75 | 10- 120 | 4 - 32 |
| TOP MULTI TECH 4 | 10m | 0.75 | 1 | 8 - 50 | 80 - 10 |
| TOP MULTI TECH 5 | 10m | 0.75 | 1 | 6 - 40 | 120 - 10 |
For 110v 50Hz motors please email us for availability and price.
Download Pedrollo Top-Multi-Tech, 50Hz PDF
Download Pedrollo Top-Multi-Tech, 60Hz PDF
Download Pedrollo Top-Multi-Tech, Intended Uses PDF
