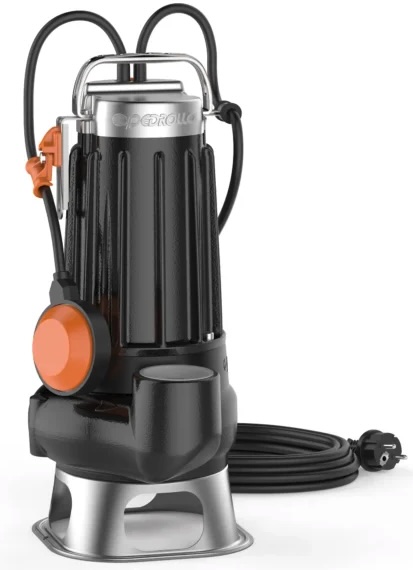

Pedrollo VXC 35-45 Vortex Submersible Pumps for Sewage
The VXC series features VORTEX-type impellers, offering robust and reliable performance for demanding applications. Constructed from thick cast iron, these pumps are exceptionally strong and resistant to abrasion, ensuring continuous operation. They are perfectly suited for draining dirty water with suspended solids and sewage, wastewater, and sludge mixtures.
2 Year Manufacturers Warranty
Wetted Components| Pump Body | Cast iron with cataphoresis treatment |
| Impellor Case | Cast iron with cataphoresis treatment |
| Impeller Case Seal | Not Present |
| Motor Shaft Seal | Motor side Silicon carbide / Graphite / NBR
Pump side Silicon carbide/Silicon carbide/NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impeller | Stainless Steel 304 |
| Shaft Key / Nut | Stainless Steel |
| Motor Shaft | Stainless Steel 431 |
| Bypass Valve Piston | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 50 Hz / 60 Hz |
| kW | 0.75 - 1.1 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | 10 m |
| Bypass Valve Y/N | N |
| Max Flow | Up to 650 l/min |
| Discharge Pressure | Up to 1.4 Bar |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | Submerged |
| Inlet Fitting | NA |
| Outlet Fitting | 1.5" or 2", Consult PDF Below |
| Max Particle Tolerance | 40mm or 50mm, Consult PDF Below |
| Max Liquid Temp | +40C |
| Min Liquid Temp | |
| Max Room Temp | |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Ingress Protection | IP68 |
Options Available| Pedrollo Part Number | Single-Phase | Three-Phase | Cable Length | kW | H(meters) | l/min |
| | VXCm 10/35 | | 10m | 0.75 | 2-10 | 400-50 |
| | | VXC 10/35 | 10m | 0.75 | 2-10 | 400-50 |
| | VXCm 15/35 | | 10m | 1.1 | 2-13.5 | 500-50 |
| | | VXC 15/35 | 10m | 1.1 | 2-13.5 | 500-50 |
| | VXCm 10/45 | | 10m | 0.75 | 1.5-8.5 | 550-50 |
| | | VXC 10/45 | 10m | 0.75 | 1.5-8.5 | 550-50 |
| | VXCm 15/45 | | 10m | 1.1 | 2-11 | 650-50 |
| | | VXC 15/45 | 10m | 1.1 | 2-11 | 650-50 |
Download Pedrollo VXC 35-45 - 50Hz PDF
Download Pedrollo VXC 35-45 - 60Hz PDF
