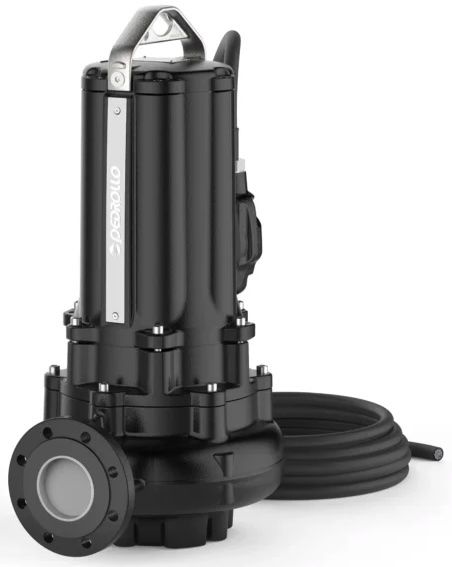

Pedrollo VXC4 High Flow Submersible Pump for Sewage
The pumps of the VXC4 series, made of cast iron of considerable thickness, exceptional strength, abrasion resistance and durability, are equipped with a VORTEX type impeller, therefore suitable for draining waste water, sewage, wastewater, mixed mud water, revived and putrid muds. They are suitable for installation in sewers, tunnels, excavations, canals, underground car parks, etc.
Features
- Liquid type: Lurid water
- Uses: Civil, industrial
- Uses: Drainage, handling of lightly dirty water, drainage
- Type: Submersible
- Family: Submersible
- Flow rate up to: 5000 l / min (300.0 m³ / h)
- Head up to: 22.50 m
- Liquid temperature up to: +40 ° C
- Depth of use below water level up to:10 m (with power cord of adequate length)
- Passage of solid bodies in suspension up to: Ø 80 mm
- For continuous service, minimum immersion: 290 mm
Options Available| Three Phase | kW | HP | lpm | Head |
| VXC4 100/80 | 7.5 | 10 | 4000 | 14.7-4.5 |
| VXC4 125/80 | 9.2 | 12.5 | 4250 | 16.7-5 |
| VXC4 150/80 | 11 | 15 | 4500 | 18.8-5.5 |
| VXC4 200/80 | 15 | 20 | 5000 | 22.1-7 |
