Piusi BP3000 Vantage, DC Vane Pumps
DC Fuel Transfer Pumps for plant equipment, featuring new innovations in design and compact size, incorporating a new level of pump intelligence allowing the pump to monitor its own activity and performance.
Studies have shown that in the majority of cases, fuel-transfer pumps break down because of improper handling by users, including exessive or extreme use, accidental start-ups, or simple carelessness, that can leave the pump running for hours on end. Breakdowns translate into loss of time and money while waiting for the pump to be repaired, and these difficulties are overcome with Vantage, thanks to new internationally patented technology, Vantage automatically prevents situations from becoming critical.
Unique Features
- Continuous duty brushless electric motor, fully protected by amperage and temperature
- ON/OFF switch integrated with remote option
- Direct connection to level switch
- LED's for working status monitoring
- Local file with events memory
Wetted Components| Pump Body | Steel |
| Impellor Case | Cast Iron |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Acetyl Resin |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Sintered Steel |
| Shaft Key / Nut | Steel |
| Motor Shaft | Steel |
| Bypass Valve Piston | Acetyl Resin |
| Bypass Valve Seal | NBR |
| Bypass Valve Spring | Stainless Steel |
Performance| Piusi Part Number | F0033700A | F0033801A |
| Voltage / Frequency | 12vDC | 24vDC |
| kW | | |
| Amps | 24 | 13 |
| RPM | | |
| Duty Cycle | Self-controlled, slows when hot | Self-controlled, slows when hot |
| Cable Length | N/A | N/A |
| Bypass Valve Y/N | Y | Y |
| Max Flow (Open) | 40 lpm | 60 lpm |
| Discharge Pressure | | |
| Max Suction Lift (Dry) | 2 m | 2 m |
| Max Suction Lift (Wet) | 4 m | 4 m |
| Inlet Fitting | 3/4" Push Fit (NOT THREADED) + Flange | 3/4" Push Fit (NOT THREADED) + Flange |
| Outlet Fitting | 3/4" Push Fit (NOT THREADED) + Flange | 3/4" Push Fit (NOT THREADED) + Flange |
| Max Particle Tolerance | 100 Micron | 100 Micron |
| Max Liquid Temp | 57° | 57° |
| Min Liquid Temp | | |
| Max Room Temp | 40° | 40° |
| Min Room Temp | | |
| Thermal Protection Y/N | Y, Plus Run-Dry Protection | Y, Plus Run-Dry Protection |
| Max Liquid Viscosity | Diesel | Diesel |
| Ingress Protection | IP55 | IP55 |
| Weight | | |

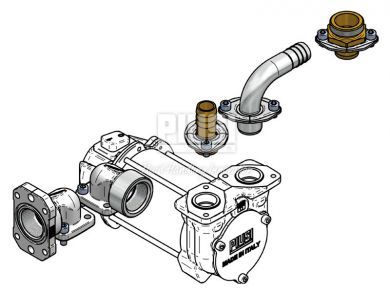

Shown below, special fittings from Piusi (Optional Extras listed in options below);
Shown below, software interface with on board memory;
Download Piusi Vantage DC, Datasheet PDF
