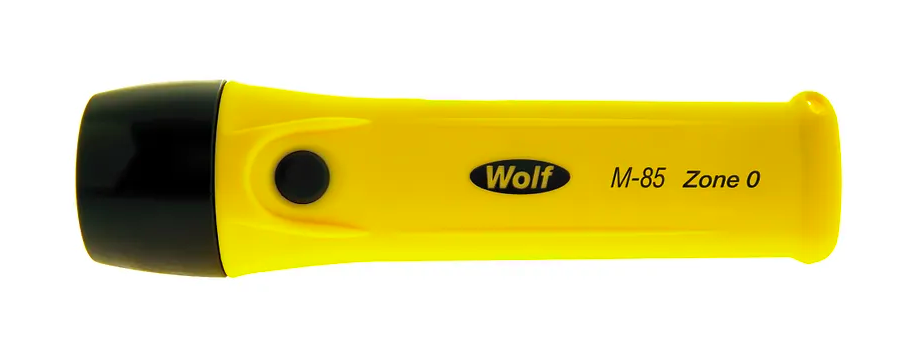

Wolf Safety Lamp Co, Midi Torch M-85
The Midi Torch is a compact high power LED pocket torch delivering excellent illumination, robustness and reliability in the most extreme conditions and is CE marked to the ATEX directive and IECEx certified for safe use in Zones 0, 1, and 2 potentially explosive gas and Zones 21 and 22 dust atmospheres.
Light Output / Duration / Power
- Fitted for life LED light sources with 25,000+ hrs life
- Up to 210 lm (at source)
- Up to 7 hours battery duration
Certification
- ATEX & IECEx Directive explosive gas, vapour, mist and dust certified for zones 0, 1, 2, 21 and 22
- T3/T4 temperature class
- 200°C maximum surface temperature
- IP67 ingress protection
- IIC Gas and IIIB Dust Approval
- Group I M1 Mining Approval
Features
- Anti-roll foot allowing it to be placed securly on base or side
- Powered by 4 x AA cells
- Supplied with cells compliant with T4 certification
- Easy to store in pockets
- Lightweight, ergonomic design
- Proven impact resistance
- Single handed switching
- Protective switch shroud for added durability
- Supplied with wrist strap* (must not be attached or used in Zone 0 areas or applications)
Specifications| Code - ATEX | II 1G Ex ia IIC T3/ T4 Ga IP67 II 2D Ex ib IIIB T200Celcius Db |
| Code - Mining | I M1 Ex ia I Ma IP67 |
| Type of Protection | 'ia' Intrinsic Satety |
| Area of Class (Gas) | Zones 0,1 & 2 - Gas groups IIA, IIB, IIC |
| Temp Classification (Gas) | T3 / T4 |
| Ambient Temp | -40 to +40 Celcius |
| Area of Classification (Dust) | 21 and 22 - Dust Groups IIB |
| Max. Surface Temp (Dust) | 200 Celcius |
| Certificate | Baseefa 11ATEX0236X / IECEx BAS 11.0116X |
| Enclosure / Lens | Impact Resistant Thermoplastic with a Polycarbonate Impact Resistant Lens |
| Beam Type | Narrow Spot with Wide Angle Fringe Light |
| Light Source - Type | High Power LED |
| Light Source - Output | Up to 210 lm |
| Light Source - Life | 25,000+ hours (fitted for life) |
| Power source - Part Number | TP-295 (4 x LR6 Cells) |
| Power source - Type | LR6 primary cells, to IEC 60086, Alkaline AAA |
| Power source - Volts | 4 x 1.5vDC LR6/AA (Included) |
| Light Duration | Up to 7 hours |
| Ingress Protection | IP67 |
| Weight (Inc Cells) | 0.190kg |
Supplied in boxes of 10 or multiples thereof, if you require less than 10 please email us and we will quote.
Download Wolf Safety Lamp Co, Midi Torches - Brochure PDF
