Alptec Static Grounding Reel, Stainless Steel, Spring Rewind, ATEX Approved
SPECIAL ORDER, PLEASE CONTACT US FOR MOQ & LEAD TIME
Available in three sizes, to accommodate 7, 15, or 20 metres of cable. A heavy duty, cast aluminium, Atex certified clip is fitted together with the required length of cable.
- 304 Stainless Steel housing & base plate.
- TPU Jacketed, Brass & 304 Stainless Steel Cable, 7, 15 or 20 m.
- Atex certified, cast aluminium earthing clip with 2, replaceable, stainless steel points.
- Spring tensioned, no over-run.
- ATEX certified.
- Built-in Cable Guide.
- Spring rewind with positive locking mechanism.

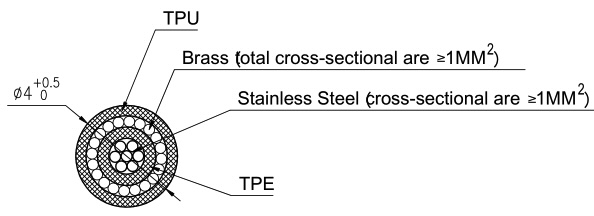

Cable Specification| Outer Coating Material | TPU |
| Inner Insulating Material | TPE |
| Outer Coating Colour | Green, Opaque, PANTONE 355C |
| External Diameter | 4-4.5 mm |
| Weight | |
| Minimum Cold Flex Temperature | -40c |
| Total Wire Cross Sectional Area / CSA | 2 mm2 |
| Brass (Outer) Wire Diameter | Unknown |
| 304 Stainless Steel (Inner) Wire Diamater | Unknown |
| AMP Rating | 20 A |
| Max. Conductor Temp. | Unknown |
| AMP Rating at Max. Conductor Temp of 105c | Unknown |
| Brass Wire Treatment | Tin Plate |
| Brass Wire Specification | Annealed |
| Brass Content, Minimum % | Unknown |
| Braid Formation | 20 Strands Brass, 7 Strands 304 Stainless Steel |
| Number of Wires | 140 |
| Individual Wire Diamater | Unknown |
| Electrical Resistance | Unknown |
| Maximum Continuous Length | Unknown |
ATEX Designation: II 2G Ex h IIC T5 Gb
Models Available| Model Number | Cable Capacity | Weight (bare reel) | Packed W&D |
| S-RL | 7m | 3.2 Kg | |
| S-RL | 15m | 4.1 Kg | |
| S-RL | 20m | | 5.1Kg, 42 x 30 x 12 cm. |
Commodity Codes| Grounding Reels | 8479899790 |
