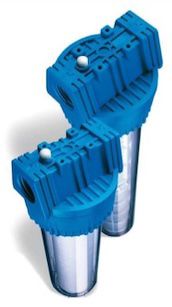

Aqua 9,3/4" Polypropylene Filter Housing, with Simplex, Duplex, or Triplex Brackets
Aqua Housings are constructed from Polypropylene (Head) with either a Transparent 'Styrene Acrylonitrile Resin' (SAN) bowl, or a White Polypropylene Bowl.
We stock the '3-Piece' (Head, Nut, Bowl) version of this filter only, because these are much less likely to crack due to the PP Nut which clamps the thread-less bowl on, this means the bowl is not subjected to any twisting or prolonged stretching forces. A spanner is also available for the Spin Collar.
- Transparent 'Styrene Acrylonitrile Resin' (SAN) bowl, or a White Polypropylene Bowl.
- With, or Without Brass Inserts (where compatible with the fluid, the insert allows the fittings to be tightened more than is possible than in a PP thread)
- NBR/Buna-N Bowl O-ring, 70-Shore
- Air release button, with NBR/Buna-N O-ring, 70-Shore
- WRAS and PED compliant
- Optional Spanner
- Optional Mounting Heads, Simplex, Duplex, or Triplex
- Optional Connecting Adapters
- Optional Viton Bowl O-Ring, 70-Shore
NO FILTER ELEMENT SUPPLIED, PLEASE ORDER THESE SEPERATELY HERE
Features| Dispensing Means | Gravity or Pumped |
| Standard Filter | 9,3/4", 10" |
| Inlet / Outlet Fittings | 1/4", 3/8", 1/2", 3/4", 1" BSP |
| Size | (3/4"BSP) 317mm Deep, 122mm Diameter |
| Max Flow (No Element) | (3/4"BSP) 108.5 LPM at 2 Bar, Water. |
| Max Working Pressure. | 10 Bar |
| Breaking Pressure, Average. | 35 Bar |
| Min/Max Temp | +5 to +50 Celcius |
Product Options| Aqua Part Number | Description | Standard Seal Material | Housing Length | Fitting Size | Air Release Button |
| A2020150 | Clear, 3/4" BSP, With Air Release | NBR | 9,3/4" | 3/4" BSP Female | Yes |
| A2030150 | White, 3/4" BSP, With Air Release | NBR | 9,3/4" | 3/4" BSP Female | Yes |
| A6010010 | Plastic Key FP2-FP3 (Spanner), Blue PP | | | | |
| A6010930 | Bracket FP2-FP3 (Single Filter), White PP | | | | |
| A6011340 | Bracket FP2-FP3 (Double Filter), White PP | | | | |
| A6011120 | Bracket FP2-FP3 (Triple Filter), White PP | | | | |
| A6020450 | Connecting Adaptor, 3/4" BSP, Black PP with O-Rings | NBR | | | |

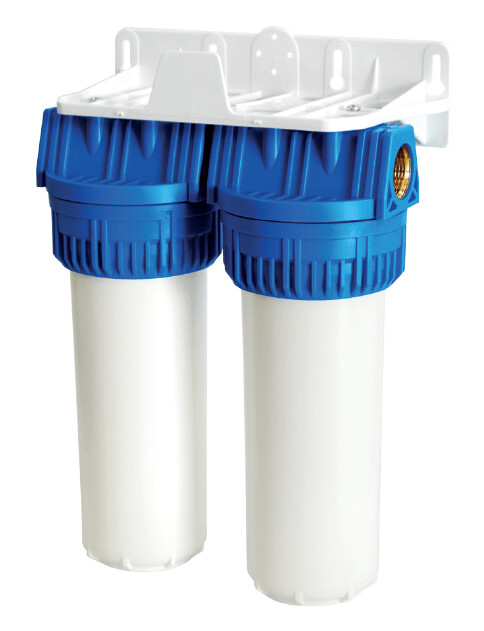

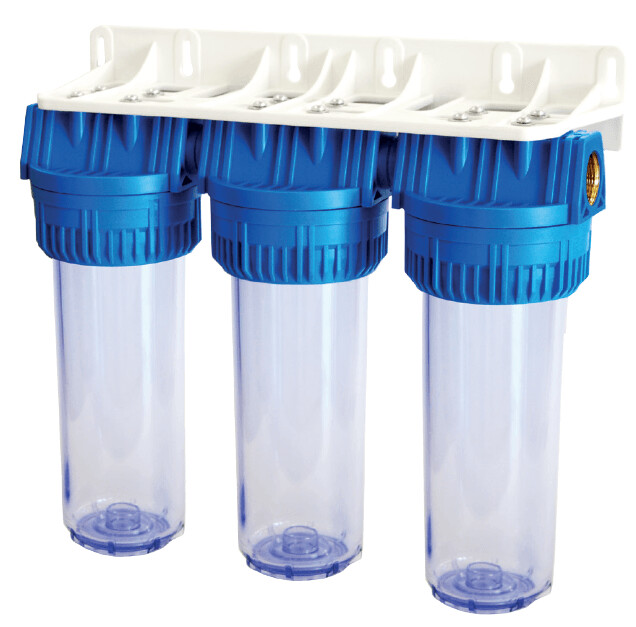

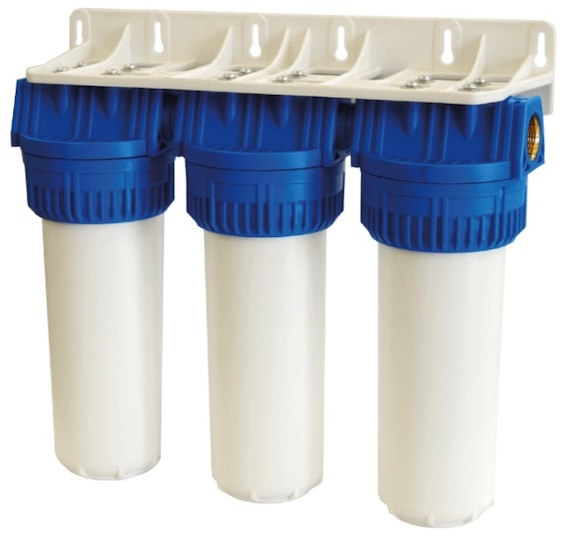

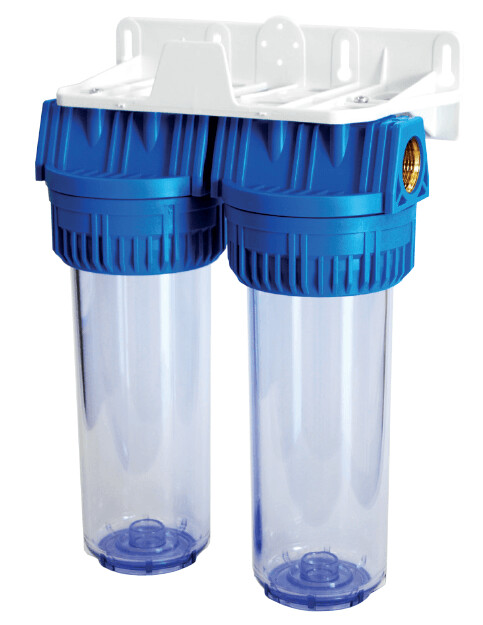

Optional Fitting Bracket Pictured Below;
Download Aqua FP3 Without Brass Inserts - Datasheet PDF
Download Aqua Accessories - Datasheet PDF
