Aquametro, CONTOIL VZO Mechanical Oil Flow Meters, BSP/NPT Threaded
  • Click to enlarge

Aquametro, CONTOIL VZO Mechanical Oil Flow Meters, BSP/NPT Threaded

ALWAYS EMAIL US FOR BEST PRICES ON AQUA METRO!

Oil meters with mechanical roller counter in Litres, and with BSP Threaded Fittings as standard.

Part Numbers featuring USG N - are models in U.S.Gallons with NPT threads.

Not approved for resale use

Reed switch RV or inductive pulser IN (NAMUR IEC 60947-5-6) are also available. Please email for prices and datasheet if required

Suitable for Fuel Types;

  • Heating Fuel, Extra Light / Light / Medium / Heavy (DN20 or above)
  • Kerosene
  • Naphtha
  • Diesel
  • Petrol
  • Lubricating Oils

Your Benefits

  • High operational safety due to vibration resistance
  • Space saving installation without requirement of straight inlet and outlet paths
  • Easy to install without restriction either horizontally, vertically or inclined
  • High operational safety due to integral safety filter in the meter inlet. Reduces effort on start-up

Meters for heavy fuel oil should have a nominal diameter of DN 20 or larger

All threaded meters from 1/2"DN15, to 1.5"DN40 are supplied complete with BSP or NPT threaded Brass Adaptors, which enable the meter to be removed easily should it require inspection / testing. These fittings also enable the meter to be orientated in the desired plane. These fittings are not available for 2"DN50 Meters. Fittings shown below;

IMPORTANT - All meters must be fitted with a pre-filter of 100 Microns, Maximum. Ingress of particles over 100 microns may lead to wear and or jamming of the Rotary Piston, and will not be covered by Warranty.

Specification
 VZO 15VZO 20VZO 25VZO 40
Nominal Diameter15 mm / 1/2"20 mm / 3/4"25 mm / 1"40 mm / 1.5"
Installation Length165 mm165 mm190 mm300 mm
Connection Threads1/2" BSP3/4" BSP1" BSP1.5" BSP
Nominal Pressure - Threaded16 Bar16 Bar16 Bar16 Bar
Maximum Temperature+130 or +180 Celcius+130 or +180 Celcius+130 or +180 Celcius+130 or +180 Celcius
Maximum Flow Rate600 lph1,500 lph3,000 lph9,000 lph
Continuous Flow Rate400 lph1,000 lph2,000 lph6,000 lph
Minimum Flow Rate10 lph30 lph75 lph225 lph
Approx Starting Flowrate4 lph12 lph30 lph90 lph
Maximum Permissible Error±1.0% of reading±1.0% of reading±1.0% of reading±1.0% of reading
Smallest Readable Amount0.01 Litres0.1 Litres0.1 Litres0.1 Litres
Registration Capacity1,000 Litres10,000 Litres10,000 Litres10,000 Litres
Safety Filter Mesh Size400 Micron400 Micron400 Micron800 Micron
Dirt Filter Mesh Size250 Micron400 Micron400 Micron600 Micron
Volume of Measuring Chamber12 cm336 cm3100 cm3330 cm3
Ingress ProtectionIP65IP65IP65IP65
Dimensions & Weight
 VZO 15VZO 20VZO 25VZO 40
Length165 mm165 mm190 mm300 mm
Width105 mm105 mm130 mm210 mm
Height 130c Type106 mm115 mm142 mm235 mm
Height 180c Type147 mm156 mm183 mm235 mm
Weight - Threaded2.2 kg2.5 kg4.2 kg17.3 kg
Aqua Metro Model Numbers - Litres / BSP
 DN 15DN 20DN 25DN 40
Local Display OnlyVZO 15 RC 130/16VZO 20 RC 130/16VZO 25 RC 130/16VZO 40 RC 130/16
With Reed Pulser RV 0.1 LVZO 15 RC 130/16-RV 0.1---
With Reed Pulser RV 1 LVZO 15 RC 130/16-RV 1VZO 20 RC 130/16-RV 1VZO 25 RC 130/16-RV 1VZO 40 RC 130/16-RV 1
With Reed Pulser RV 10 L---VZO 40 RC 130/16-RV 10
With Inductive Pulser IN 0.01 LVZO 15 RC 130/16-IN 0.01VZO 20 RC 130/16-IN 0.01--
With Inductive Pulser IN 0.1 L--VZO 25 RC 130/16-IN 0.1VZ0 40 RC 130/16-IN 0.1
Aqua Metro Model Numbers - U.S.Gallons / NPT
 DN 15DN 20DN 25DN 40
Local Display OnlyVZO 15 RC USG N 130/16VZO 20 RC USG N 130/16VZO 25 RC USG N 130/16VZO 40 RC USG N 130/16
With Reed Pulser RV 0.1 LVZO 15 RC USG N 130/16-RV 0.1---
With Reed Pulser RV 1 LVZO 15 RC USG N 130/16-RV 1VZO 20 RC USG N 130/16-RV 1VZO 25 RC USG N 130/16-RV 1VZO 40 RC USG N 130/16-RV 1
With Reed Pulser RV 10 L---VZO 40 RC USG N 130/16-RV 10
With Inductive Pulser IN 0.01 LVZO 15 RC USG N 130/16-IN 0.01VZO 20 RC USG N 130/16-IN 0.01--
With Inductive Pulser IN 0.1 L--VZO 25 RC USG N 130/16-IN 0.1VZ0 40 RC USG N 130/16-IN 0.1
Aqua Metro Part Numbers - Litres / BSP
 DN 15DN 20DN 25DN 40
Local Display Only92041920479205792004
With Reed Pulser RV 0.1 L92042---
With Reed Pulser RV 1 L92043920489205892018
With Reed Pulser RV 10 L---92019
With Inductive Pulser IN 0.01 L9190091902--
With Inductive Pulser IN 0.1 L--9191391906
Aqua Metro Part Numbers - U.S.Gallons / NPT
 DN 15DN 20DN 25DN 40
Local Display OnlyTBC92145TBCTBC
With Reed Pulser RV 0.1 LTBC---
With Reed Pulser RV 1 LTBCTBCTBCTBC
With Reed Pulser RV 10 L---TBC
With Inductive Pulser IN 0.01 LTBCTBC--
With Inductive Pulser IN 0.1 L--TBCTBC

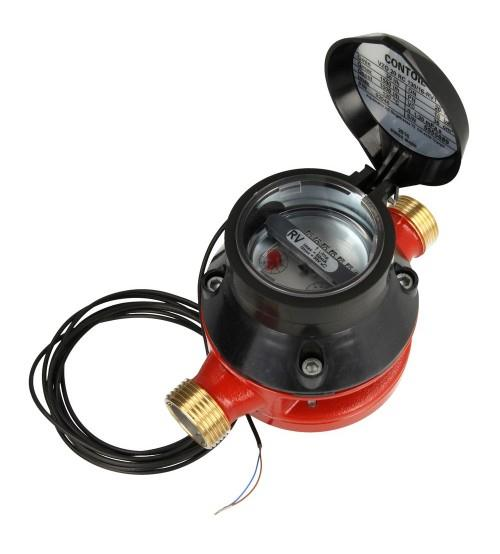

Shown Below: RV Version, with pulse output cable.

Download Aqua Metro Mechanical Oil Flow Meters Threaded PDFDownload Aqua Metro Mechanical Oil Flow Meters Threaded PDF

Product Options

£672.00
