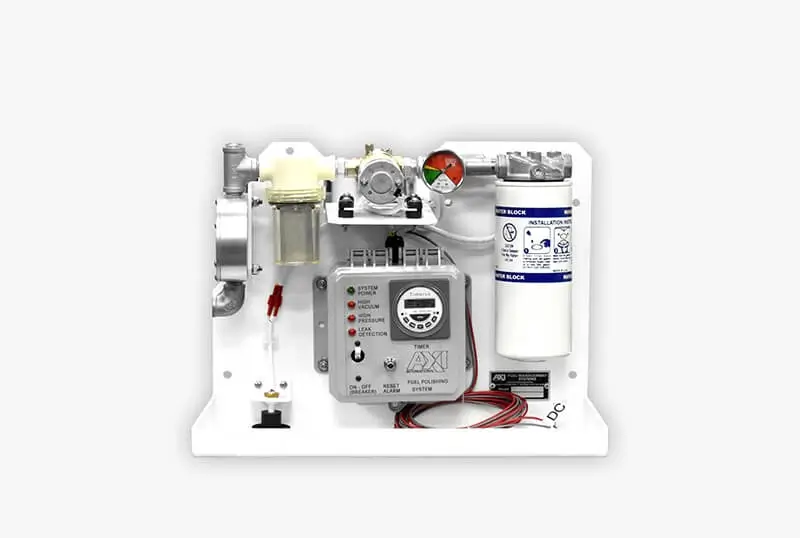

AXI International, Compact Fuel Maintenance System, FPS DX-S
The FPS DX-S is a programmable, fully automated, fuel maintenance system that removes water, sludge, and other contaminants from fuel storage tanks through routine filtration. The system’s compact design allows for tight indoor installations such as inside gen-set enclosures or engine rooms. With a 1.3 GPM flow rate, the FPS DX-S can polish up to 640 gallons (2,423 liters) of fuel in a runtime of 8-hours.
System Features:
- Automated Filtration; Establish a fuel polishing runtime schedule with up to three start and stop times for each day of the week
- Smart System Alarms; Automatic system shutdown with notifications of needed maintenance or system fault
Product Specifications| Nominal Flow Rate | 1.3 GPM/80 GPH (5 LPM/302.8 LPH) |
| Primary Filter | 10μ Particulate Fine Filter or 3μ Water Block |
| Strainer | 50 Mesh Basket Strainer |
| Fuel Conditioner | LG-X 500 Inline Magnetic Conditioner |
| Pump | DC Gear Pump |
| System Controller | Smart Filtration Controller with Safety and Alarm Features |
| Power | 12VDC/10A or 24VDC/5A |
| Plumbing | Stainless Steel |
| Inlet Fitting | 1/2” Hose Barb |
| Outlet Fitting | 1/2” Hose Barb |
| Construction | Powder Coated Aluminum Back Plate |
| Dimensions | 15” x 18.5” x 7.5” (38 x 47 x 19 cm) (H x W x D) |
| Weight | 20lbs. (9.1kg) |
Download AXI FPS DX-S - Specification PDF
Download AXI FPS DX-S - Manual PDF
