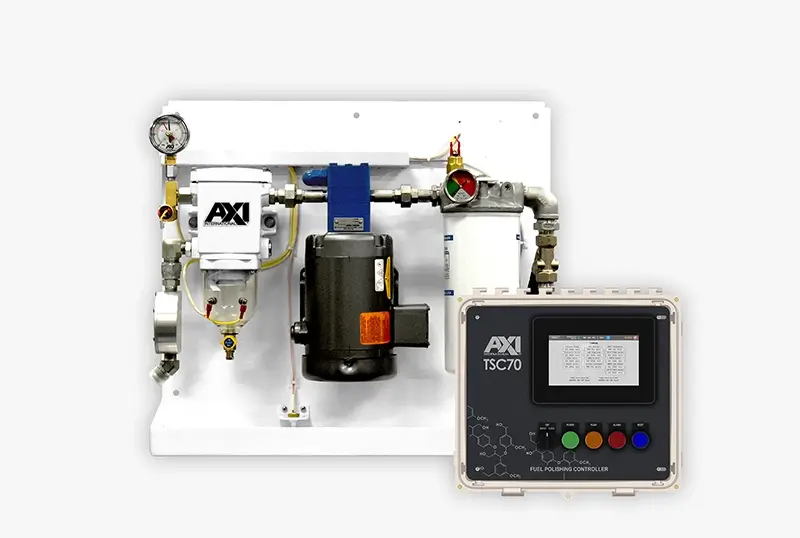

AXI International, Compact Fuel Maintenance System, FPS SX-F
The FPS SX-F is a programmable, fully automated, fuel maintenance system that removes water, sludge, and other contaminants from fuel storage tanks through routine filtration. The system’s compact design allows for tight indoor installations such as inside gen-set enclosures or engine rooms. With a 2.5 GPM flow rate, the FPS SX-F can polish up to 1,200 gallons (4,543 liters) of fuel in a runtime of 8-hours. Robust system upgrade options are available for this system and are outlined below.
- Automatically removes contaminants from fuel storage tanks through user-scheduled filtration (2.5 GPM flow rate)
- Notifies users of routine maintenance or system faults such as needed filters changes or flow restrictions
- Compact design for tight indoor installations
- Drip tray with built-in leak detection
- Field connections for external integrations such as remote monitoring and system shutdown capabilities
- Robust set of available upgrade options
System Features;
- Automated Filtration; Establish a fuel polishing runtime schedule with up to three start and stop times for each day of the week
- Smart System Alarms; Automatic system shutdown with notifications of needed maintenance or system faults
- Remote Monitoring; Available system integration with external monitoring systems for observation of system statuses
- Touchscreen Controller*; Modify runtime schedules and system settings with an intuitive user interface
System Options;
- Manual Additive Injection; Manually draw additive into the polisher with a dedicated supply port and ball valve
- Auto Water Drain (AWD); Automatically drain water separator of collected water for decreased frequency of maintenance
- Pressure Transmitter; Replace standard pressure switch for detailed monitoring of pressure levels in the system
- Flow Transmitter; Replace standard flow switch for detailed monitoring of flow rate in the system
- Multi-Tank Polishing/Transfer; Polish and transfer fuel between multiple fuel storage tanks
- Multi-Point Flow Path*; Add multiple supply and return valves for better tank cleaning coverage
- Fuel Heater; Warm up circulated fuel to resist gelling in freezing temperatures
- Heat Shield; Provide additional heat protection for water separator bowl
* Only available when paired with a TSC controller. Controller upgrade may also be required for certain option combinations.
Product Specifications| Nominal Flow Rate | 2.5 GPM/150 GPH (9.5 LPM/567.8 LPH) |
| Primary Filter | 10 or 30μ Particulate or 60μ Stainless Steel Screen with Centrifugal Water Separator |
| Secondary Filter | 3, 10 or 25μ Fine Filter or 3, 10μ Water Block |
| Fuel Conditioner | LG-X 500 Inline Magnetic Conditioner |
| Pump | 1/3 HP Spur Gear Pump |
| System Controller | Smart Filtration Controller with Safety and Alarm Features |
| Power | 120V/60Hz/1Ph or 230V/50Hz/1Ph // 50 Hz configuration decreases nominal flow rate from 2.5 GPM (9.5 LPM) to 2 GPM (7.6 LPM) |
| Plumbing | Black Iron |
| Inlet Fitting | 3/4” Equivalent JIC 37° Flare |
| Outlet Fitting | 3/4” Equivalent JIC 37° Flare |
| Construction | Powder Coated Aluminum Back Plate |
| Dimensions | 23” x 26“ x 9” (58 x 69 x 23 cm) (H x W x D) |
| Weight | 57 lbs (25.9 kg) |
