Cimtek, Spin-On Canister Type, Water and Particle Filter Elements (Cases/12)
  • Click to enlarge

Cimtek, Spin-On Canister Type, Water and Particle Filter Elements (Cases/12)

CASES OF 12 INDIVIDUALLY WRAPPED ELEMENTS

For heads, see options below.

High dirt capacity disposable filter elements, suitable for a wide range of fuels including petroleum, bio fuels and blends thereof, as well as for air compressors.

For Bio Diesel use Cimtek Microglass Filters, these filter the Biodiesel to 2 microns as recommended in EN fuel filtration specifications.

Max Pressure for Fuel/Oil filters:

  • Working 50 PSI
  • Differential 25 PSI

Max Pressure for Compressor filters:

  • TBC

Head Part Numbers (our ref's, email us if the required head is not listed):

  • 1"-12 UNF Nose to 1"BSP Female In/Out, Aluminium = GFH3581-A / HYD.HDF
  • 1,1/2"-16 UNF Nose to 1"NPT Female In/Out, Aluminium = GP906005-67
  • 1,1/2"-16 UNF Nose to 1"BSP Female In/Out, Cast Iron = HYDRA.HSHD
Part Number Comparison Chart
TypeFlow (U.S.GPM)Micron RatingFitting SizeCimtek Part NumberCimtek Model Number

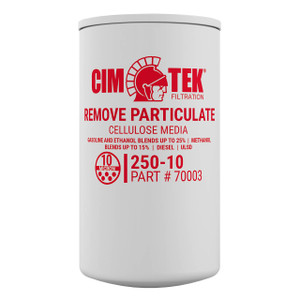

Particle (Cellulose)25101"-12 UNFCT70003250-10
Particle (Cellulose)25101 3/8"-12 UNFCT70005250A-10
Water & Particle (Hydroglass)25101,1/2"-16 UNFCT70008400HG-10
Particle (Cellulose)25101"-12 UNFCT70010300-10
Particle (Cellulose)25301"-12 UNFCT70012300-30
Particle (Cellulose)25101,1/2"-16 UNFCT70015400-10
Particle (Cellulose)25301,1/2"-16 UNFCT70016400-30
Particle (Cellulose)40101,1/2"-16 UNFCT70019800-10
Particle (Cellulose)40301,1/2"-16 UNFCT70020800-30
Water & Particle (Hydroglass)40101,1/2"-16 UNFCT70024800HG-10
Particle (Microglass)2511"-12 UNFCT70025300HA-01
Particle (Cellulose)25301,1/2"-16 UNFCT70027450-30

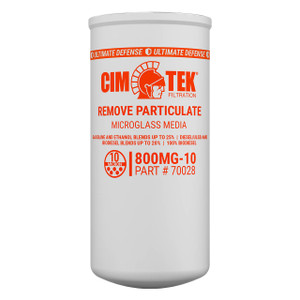

Particle (Microglass)40101,1/2"-16 UNFCT70028800MG-10
Particle (Microglass)25101,1/2"-16 UNFCT70032450MG-10
Particle (Cellulose)25101,1/2"-16 UNFCT70034450-10
Particle (Microglass)4021,1/2"-16 UNFCT70036800MG-02
Water & Particle (Hydroglass)4021,1/2"-16 UNFCT70037800HG-02
Particle (Microglass)2511,1/2"-16 UNFCT70039400HA-01
Water & Particle (Hydrosorb)25301,1/2"-16 UNFCT70043475HS-30
Particle (Cellulose)40301,1/2"-16 UNFCT70053800SL-30
Particle (Microglass)2521"-12 UNFCT70057300MG-02
Particle (Microglass)25101"-12 UNFCT70058300MG-10
Water & Particle (Hydrosorb)25101"-12 UNFCT70059300HS-10
Water & Particle (Hydrosorb)25101,1/2"-16 UNFCT70060400HS-10
Water & Particle (Hydrosorb)25101,3/8"-12 UNFCT70061260AHS-10
Water & Particle (Hydrosorb)25101"-12 UNFCT70062260HS-10
Water & Particle (Hydrosorb)40101,1/2"-16 UNFCT70063800HS-10
Water & Particle (Hydrosorb)25301"-12 UNFCT70064300HS-30
Water & Particle (Hydrosorb)25301,1/2"-16 UNFCT70065400HS-30
Water & Particle (Hydrosorb)25301,3/8"-12 UNFCT70066260AHS-30
Water & Particle (Hydrosorb)25301"-12 UNFCT70067260HS-30
Water & Particle (Hydrosorb)40301,1/2"-16 UNFCT70068800HS-30
Particle (Microglass)40301,1/2"-16 UNFCT70074800MG-30
Water & Particle (Hydrosorb)25101,1/2"-16 UNFCT70075450HS-10
Water & Particle (Hydrosorb)25301,1/2"-16 UNFCT70076450HS-30
Particle (Wire Mesh)251441,1/2"-16 UNFCT70081400WM-144
Particle (Cellulose)25301"-12 UNFCT70088250-30
Particle (Cellulose)25301,3/8"-12 UNFCT70089250A-30
Particle (Cellulose)25301,1/2"-16 UNFCT70092475-30
Particle (Cellulose)25101"-12 UNFCT70094260-10
Particle (Cellulose)25301"-12 UNFCT70095260-30
Particle (Cellulose)25101,1/2"-16 UNFCT70097475-10
Water & Particle (Hydrosorb)25101,1/2"-16 UNFCT70098475HS-10
Particle (Microglass)25101,1/2"-16 UNFCT70104400MG-10
Particle (Microglass)2521,1/2"-16 UNFCT70105400MG-02
Water & Particle / Phase Separation (Multi-Fuel)25101"-12 UNFCT70117260MB-10
Particle (Cellulose)22171"-12 UNFCT70134TBC
Particle (Cellulose)22331"-12 UNFCT70135TBC
Particle (Cellulose)224.51"-12 UNFCT70136TBC

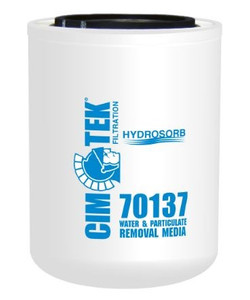

Water & Particle (Hydrosorb)22241"-12 UNFCT70137TBC
Particle (Microglass)22201"-12 UNFCT70139TBC
Particle (Microglass)22101"-12 UNFCT70140TBC
Particle (Microglass)2261"-12 UNFCT70141TBC
Particle (Wire Mesh)221441"-12 UNFCT70145TBC
Particle (Cellulose)22171"-12 UNFCT70146TBC
Particle (Cellulose)22331"-12 UNFCT70147TBC
Particle (Microglass)22101"-12 UNFCT70152TBC
Particle (Cellulose)40171,1/2"-16UNFCT70157TBC
Particle (Cellulose)40331,1/2"-16UNFCT70158TBC
Water & Particle (Hydrosorb)40241,1/2"-16UNFCT70160TBC
Particle (Microglass)40TBC1,1/2"-16UNFCT70162TBC
Particle (Microglass)40101,1/2"-16UNFCT70163TBC
Particle (Microglass)4061,1/2"-16UNFCT70164TBC
Particle (Wire Mesh)401441,1/2"-16UNFCT70168TBC
Particle (Cellulose)40171,1/2"-16UNFCT70171TBC
Particle (Cellulose)40331,1/2"-16UNFCT70172TBC
Water & Particle (Hydrosorb)40241,1/2"-16UNFCT70174TBC
Particle (Microglass)40201,1/2"-16UNFCT70177TBC
Particle (Microglass)40101,1/2"-16UNFCT70178TBC
Particle (Microglass)4061,1/2"-16UNFCT70179TBC
Water & Particle (Hydrosorb)4091,1/2"-16UNFCT70182TBC
Particle (Wire Mesh)401441,1/2"-16UNFCT70183TBC
Particle (Cellulose)25171,1/2"-16UNFCT70195TBC
Particle (Microglass)2561,1/2"-16UNFCT70201TBC
Particle (Microglass)25101,1/2"-16UNFCT70202TBC
Water & Particle (Hydroglass)TBCTBCTBCCT70215TBC
Particle (Microglass)2521,3/8"-12 UNFCT70221260AMG-02
Water & Particle (Hydroglass)2521,3/8"-12 UNFCT70223260AHG-02
Particle (Microglass)25101,3/8"-12 UNFCT70225260AMG-10
Water & Particle (Hydroglass)25101,3/8"-12 UNFCT70227260AHG-10
Particle (Microglass)2521"-12 UNFCT70230260MG-02
Water & Particle (Hydroglass)2521"-12 UNFCT70232260HG-02
Particle (Microglass)25101"-12 UNFCT70234260MG-10
Water & Particle (Hydroglass)25101"-12 UNFCT70235300HG-10
Water & Particle (Hydroglass)25101"-12 UNFCT70236260HG-10
Particle (Cellulose)40TBC1"-12 UNFCT70313 (Compressor Filter)TBC
Particle (Cellulose)40TBC1"-12 UNFCT70315 (Compressor Filter)TBC
Particle (Cellulose)40TBC1,1/4"-16 UNFCT70316 (Compressor Filter)TBC
Particle (Microglass)40TBC1"-20 UNFCT70317 (Compressor Filter)TBC
Particle (Microglass)40TBC1,1/4"-11 BSPCT70319 (Compressor Filter)TBC
Particle (Microglass)40TBC1"-20 UNFCT70320 (Compressor Filter)TBC
Particle (Cellulose)40TBC1"-12 UNFCT70322 (Compressor Filter)TBC
Particle (Microglass)40TBC1"-20 UNFCT70323 (Compressor Filter)TBC
Particle (Microglass)40TBC1,1/4"-11 BSPCT70324 (Compressor Filter)TBC
Particle (Microglass)40TBC1,1/4"-11 BSPCT70325 (Compressor Filter)TBC
Particle (Cellulose)40TBC1,1/4"-12 UNFCT70326 (Compressor Filter)TBC
Water & Particle (Hydroglass)4021,1/4" (threadform TBC)CT70336TBC
Particle (Microglass)TBC31,1/2"-16 UNFCT70406TBC
Water & Particle (Hydrosorb)TBCTBC1"-12 UNFCT70431 (Compressor Filter)TBC

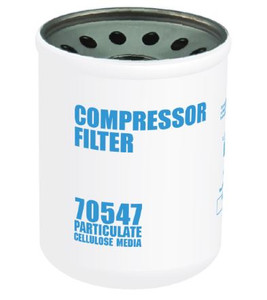

Particle (Cellulose)40TBC1,1/2"-16 UNFCT70547 (Compressor Filter)TBC
Particle (Cellulose)40TBC1"-12 UNFCT70548 (Compressor Filter)TBC
Particle (Cellulose)40TBC3/4"-16 UNFCT70562 (Compressor Filter)TBC
Particle (X-Glass)TBC31,1/2"-16 UNFCT70614TBC
Particle (Cellulose)40TBC1"-12 UNFCT70668 (Compressor Filter)TBC
Particle (Cellulose)TBCTBC3/4"-16 (threadform TBC)CT70669 (Compressor Filter)TBC
Particle (Microglass)40TBCM20-1.5 UNCT70739 (Compressor Filter)TBC
Particle (Microglass)2231"-12 UNFCT70749TBC
Particle (Cellulose)40TBC1"-12 UNFCT70751 (Compressor Filter)TBC
Particle (Cellulose)2521"-12 UNFCT70806300-02
Particle (Cellulose)2521,1/2"-16 UNFCT70808400-02
Particle (Cellulose)4021,1/2"-16 UNFCT70814800-02
Particle (Cellulose)2521"-12 UNFCT70819250-02
Particle (Cellulose)2521,3/8"-12 UNFCT70821250A-02
Particle (Microglass)25101,1/2"-16 UNFCT70898400HA-10
Water & Particle25101"-12 UNFCT70236260HG-10
Particle (Microglass)2551,1/2"-16 UNFCT70991400HA-05
Particle (Microglass)2551"-12 UNFCT70993300HA-05

Download Cimtek Cross Reference Sheet PDFDownload Cimtek Cross Reference Sheet PDF
