Fuel Sampling Bucket, Stainless Steel with Bottom Band, Fitted With Grounding Cable and RACO Clip. 10L, 12L and 15L
  • Click to enlarge
  • Click to enlarge

Fuel Sampling Bucket, Stainless Steel with Bottom Band, Fitted With Grounding Cable and RACO Clip.

  • High quality, strong & durable
  • Made of 18/10 (304) stainless steel, 100% rust-free
  • One-piece construction, no seams or welds to harbour bacteria or split
  • Flat handle will not cut into your hand when bucket is heavy
  • Base measures 8” diameter on all sizes
  • Bottom band lifts the cold or warm surface off the floor and creates a "grab-hold" for tipping, it also gives weight to the base to prevent toppling
  • Will not distort if water freezes inside
  • Lids are available for every size (all subject to MOQ and must be ordered with buckets
  • Available in 10, 12, and 15 litre capacities (15 litre subject to MOQ)

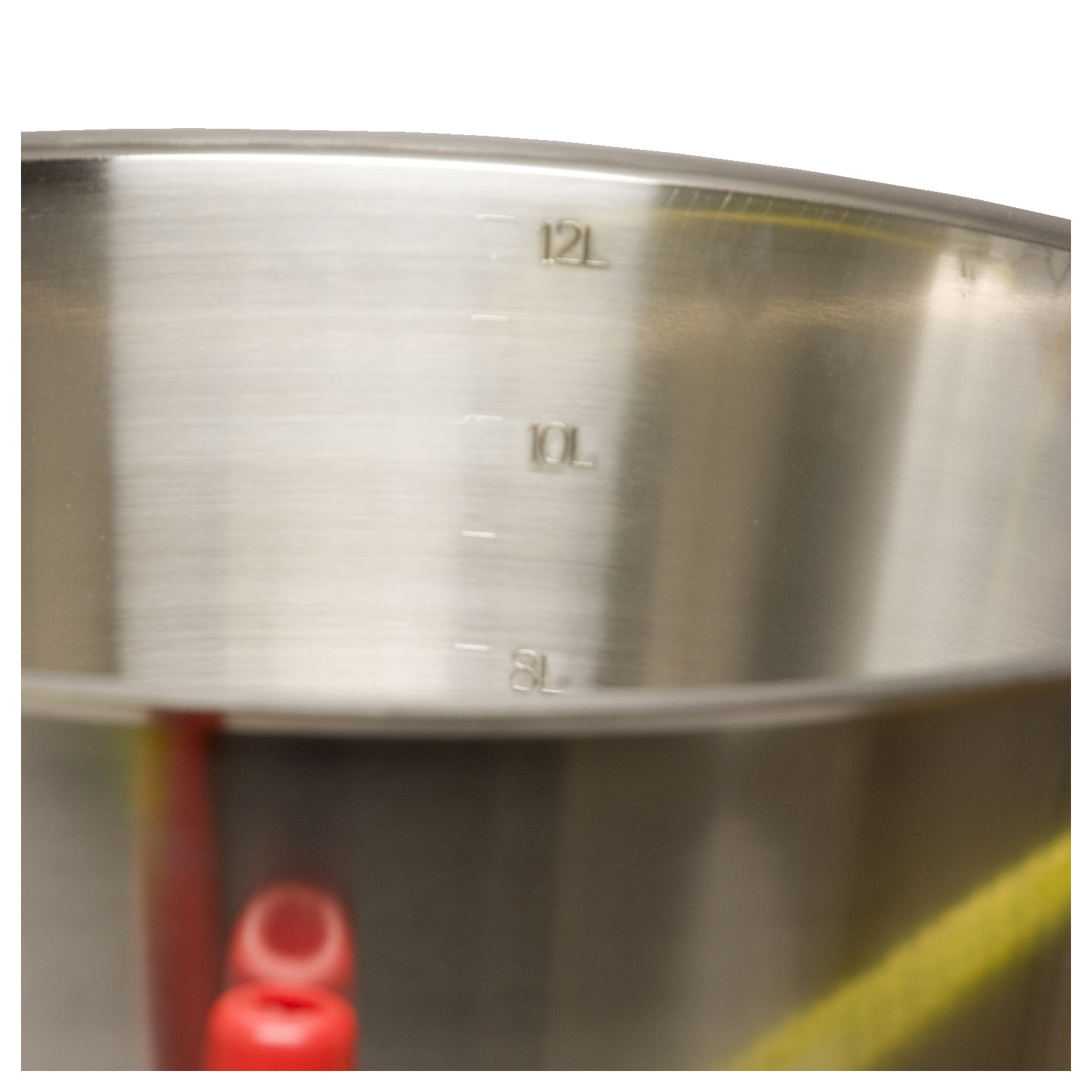

  • Stamped graduations inside the bucket every 1 Litre, figured at 5 and 10 Litre - INDICATIVE ONLY, MARKINGS MAY BE OUT BY ±20%.
  • Fitted with 1m of static bonding cable and quality 'RACO' earthing clamp
  • Available without the bonding assembly if required, HERE

About Our Unique Grounding Cables...

  • Manufactured by Oilybits in our U.K. production facility.
  • Polyolefin yellow/green stripe, heat shrink cable sheath - the correct colour for earthing applications and fully resistant to Oils, unlike PVC.
  • 6mm2 tinned copper, braided cable for greater resistance to acidic / oxidised oils.
  • 1m length of cable.
  • Cable end terminals are fused with solder to prevent fraying, loosening, and contamination / corrosion of the cable, thereby ensuring a stable ground connection.
  • RACO, cast brass, 70mm grounding clip, with red handles.
  • 304 stainless steel nuts and bolts throughout, featuring Nyloc Nuts or Shake-proof Washers to prevent loosening, thereby ensuring a stable ground connection.
  • Nylon inner seal on vessel bolt, to prevent leakage of contents above the terminal. Oil resistant.
  • A superior product to that of our competition.

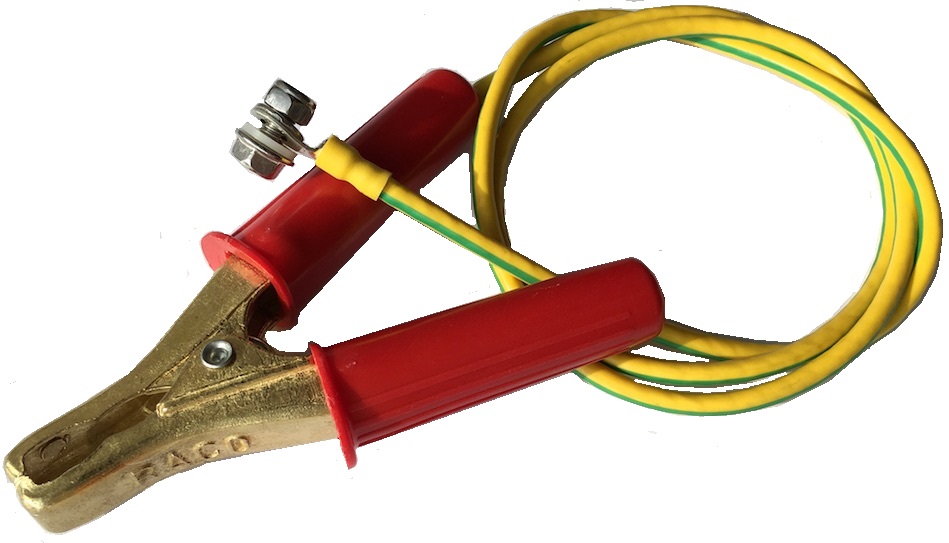

Shown Below; Grounding Cable, featuring soldered terminal end & nylon bolt seal.


Bucket Specifications
CapacityRim DiameterBucket HeightOverall HeightWeight (Approx. not a controlled characteristic)Our Part Number
10 Litre300 mm257 mm288 mm1.35 Kg523101-03
12 Litre312 mm289 mm320 mm1.36 Kg523102-03
15 Litre325 mm330 mm365 mm1.60 Kg523103-03
Lid Specifications
CapacityDiameterOur Part Number
10 Litre300 mm523201
12 Litre310 mm523202
15 Litre325 mm523203

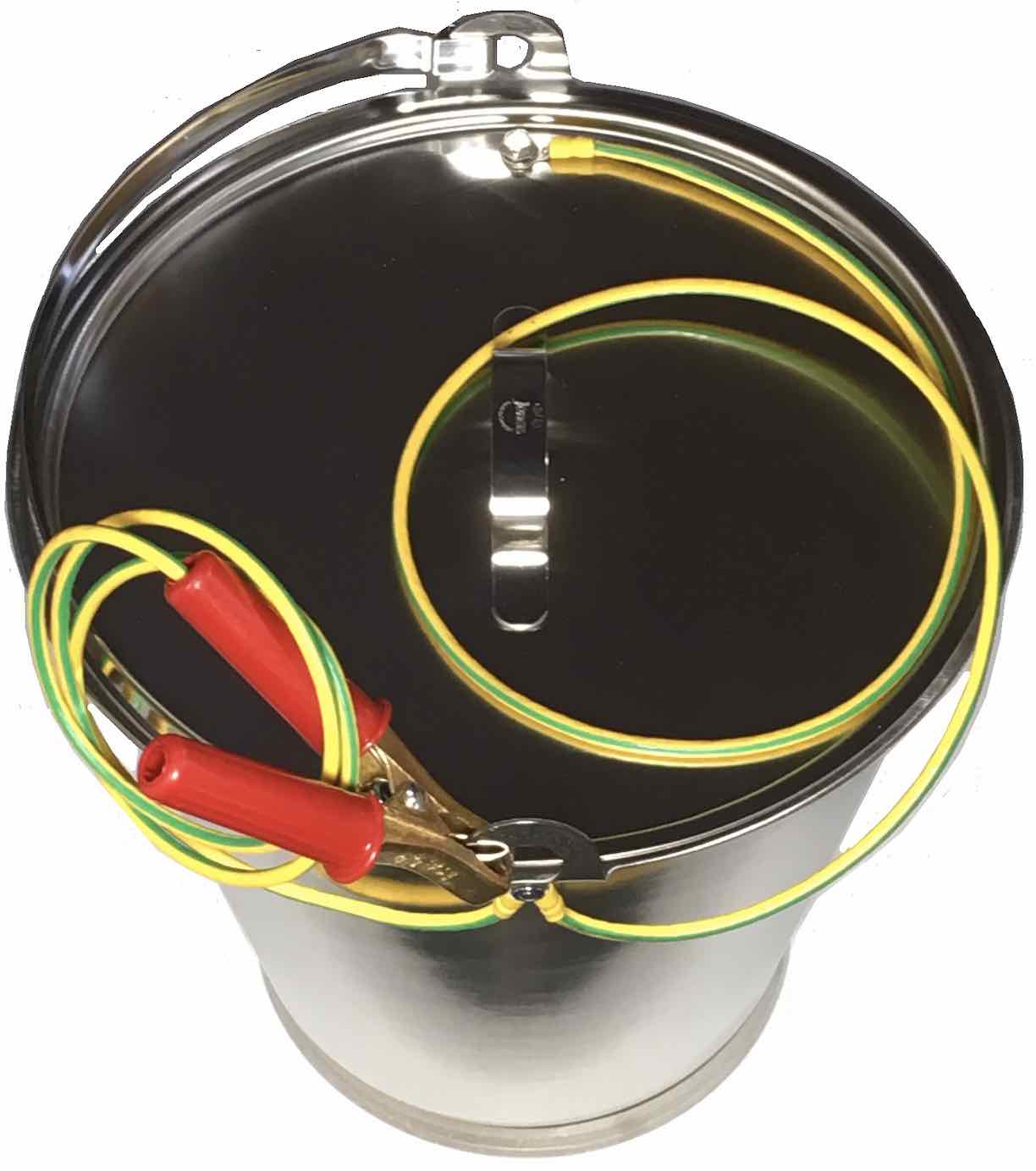

Shown Below: Optional Bucket Lids

Commodity Codes
Sampling Vessel9026900000

Download RACO Clip, Drawing PDFDownload RACO Clip, Drawing PDF

Product Options

£83.50


Product CodeASC_Bucket_Cable
ConditionNew
