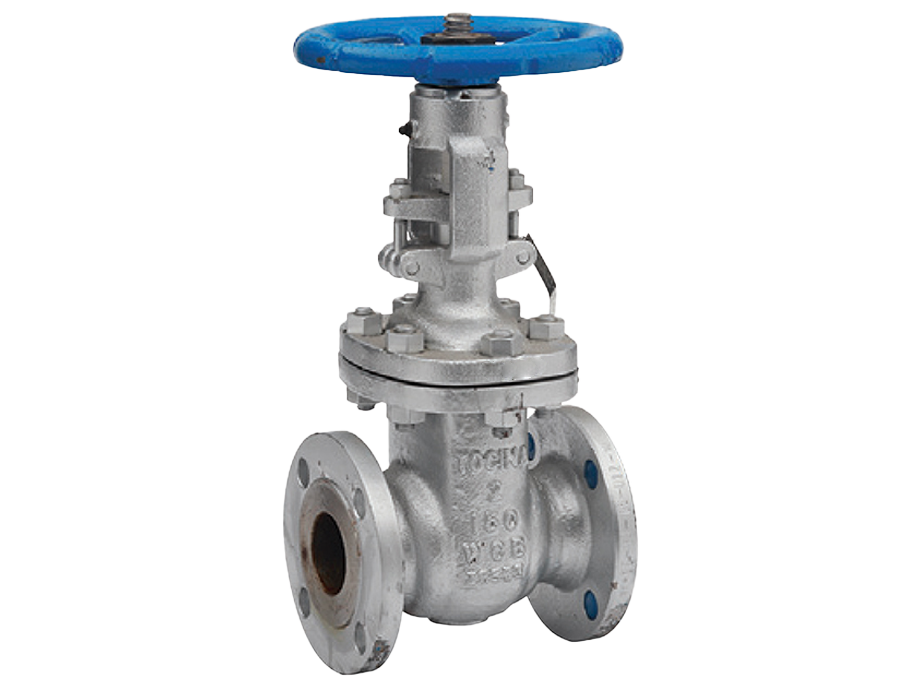

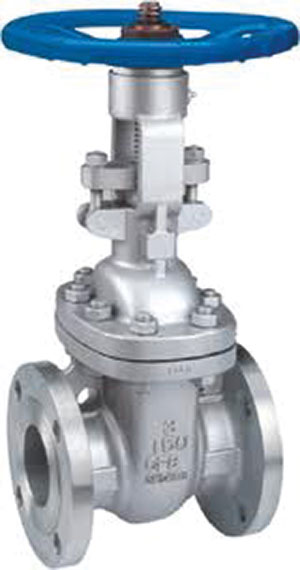

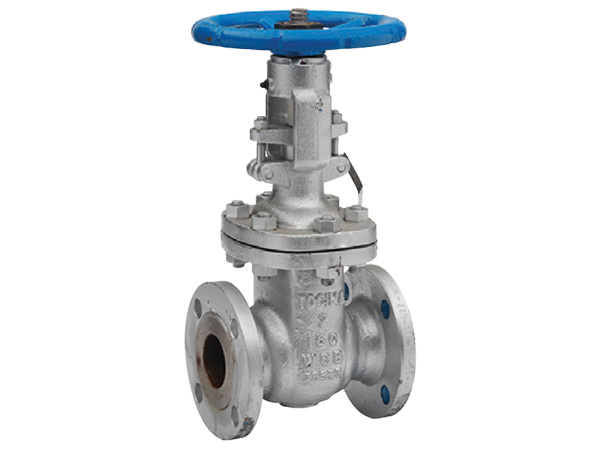

Gate Valve, WCB Carbon Steel, ASME B16.5 ANSI 150 Flanged
Flanged to ANSI 150RF, Design to API600, O S & Y Bolted Bonnet, A216 Gr WCB, Trim 13% CR + HFS
Class 150 Rated. Temperature -29 C to 425 C
Technical Requirements:
- Design & manufacture to: API 600/ BS EN ISO 10434:2004
- Press/ Temp to ANSI B16.34
- Face to face to ANSI B16.10
- Flange Dimensions to ASME B16.5
- Test & Inspection to API 598/ ISO 5208
- NACE MR-01-75 (Latest Revision)
- Conform to Pressure Equipment Directive 97/23/EC
