Giuliani Anello 70302A & 70302P Fuel Filter, 1/2" BSP
General purpose, cast-aluminium head filters for use with fuels and oils.
The filter element is available in Paper or Steel Mesh to suit the level of filtration required.
The filter bowl is available in Aluminium (70302A), or clear Plastic (70302P) to allow visual inspection of the filter condition.
An optional mounting bracket (Type No. 70358, Part No. 014.0051.000) is also available.
Made in Italy.
Manufacturers & Part Numbers| Type | Manufacturers Part Number | Manufacturers Type Number | Filter Style | Micron Rating | Replacement Filter Link | Giuliani Anello Brochure Page (Refer to PDF Brochure Below) |
| Aluminium Bowl, Paper Element | 001.0054.001 | (70302A) 70302/0015AP | Paper, Pleated | 15 | HERE | 70 |
| Aluminium Bowl, Stainless Steel Pleated Element | 001.0054.003 | (70302A) 70302/006A | Stainless Steel, Pleated | 60 | HERE | 70 |
| Aluminium Bowl, Stainless Steel Pleated Element | 001.0054.004 | (70302A) 70302/01A | Stainless Steel, Pleated | 100 | HERE | 70 |
| Clear Bowl, Paper Element | 001.0055.001 | (70302P) 70302/0015P | Paper, Pleated | 15 | HERE | 70 |
| Clear Bowl, Stainless Steel Pleated Element | 001.0055.003 | (70302P) 70302/006P | Stainless Steel, Pleated | 60 | HERE | 70 |
| Clear Bowl, Stainless Steel Pleated Element | 001.0055.004 | (70302P) 70302/01P | Stainless Steel, Pleated | 100 | HERE | 70 |
Replacement Gasket Set Part Numbers| Type | Manufacturers Part Number | Manufacturers Type Number | Filter Style | Material | Giuliani Anello Brochure Page (Refer to PDF Brochure Below) |
| Gasket Set, 70300 | 014.0066.001 | 3204 | Pleated Paper | NBR | 83 |
| Gasket Set, 70300 | 014.0066.002 | 3204V | Pleated Steel | Viton | 83 |
Replacement Cover Set Part Numbers| Type | Manufacturers Part Number | Manufacturers Type Number | Material | Giuliani Anello Brochure Page (Refer to PDF Brochure Below) |
| Cover Set, 70302 | 014.0353.000 | C70302 | Aluminium | 83 |
Replacement Bowl Set Part Numbers| Type | Manufacturers Part Number | Manufacturers Type Number | Material | Giuliani Anello Brochure Page (Refer to PDF Brochure Below) |
| Bowl Set, 70300P | 014.0401.000 | B70300P | Plastic | 83 |
| Bowl Set, 70300A | 014.0406.000 | B70300A | Aluminium | 83 |

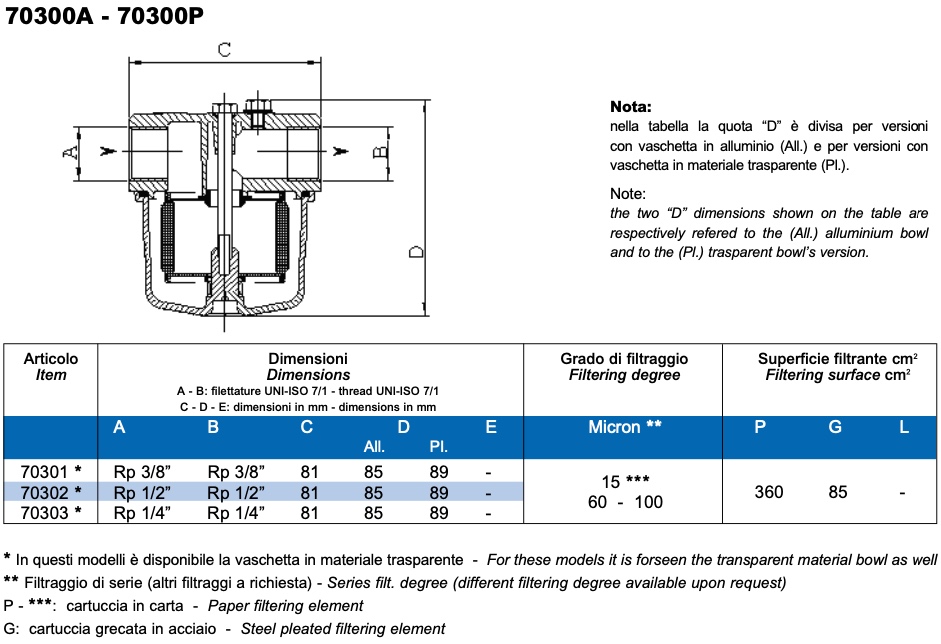

Below: Dimensions
Giuliani Anello 'Heavy Oil' Filters are very widely used in domestic heating oil / fuel oil filtration applications. Giuliani Anello filter housings all feature a high quality pressure die-cast aluminium head with BSP(ISO) female threads, or PN16 flanges, and have either a bowl in aluminium, or clear acrylic, so that the contents of the bowl and the state of the filter element inside it can be observed in-situ. The Giuliani Anello Heavy Oil Filter range includes filters with magnetic particle arresters, constant or thermostatically controlled heating elements, self-cleaning filter elements, and drain valves. Oilybits can offer all models, though due to box quantities there may be MOQ's on certain items, please contact us with your requirements.
Download Giuliani Anello Brochure, 2015 PDF
