Giuliani Anello MSVM/6B Manually Resetting Valve
  • Click to enlarge

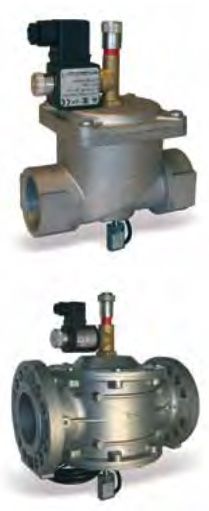

Giuliani Anello MSVM/6B Manually Resetting Valve

For use with Gas of the follwing groups;

  • Manufactured Gases (Town Gas)
  • Natural Gases (Group H - Methane)
  • Liquified Petroleum Gas (LPG)
  • Non Agressive Gases
Technical Specifications
ConnectionsVarious - See Table Below
Maximum Operating Pressure6.0 Bar

Made in Italy.

Manufacturers & Part Numbers
SizeManufacturers Part NumberManufacturers Type NumberDescriptionMax PressureGiuliani Anello Brochure Page (Refer to PDF Brochure Below)
3/4" BSP010.0136.001MSVM34/6BAluminium Body, Voltage 230vAC 50-60Hz6.0 Bar51
1" BSP010.0137.001MSVM100/6BAluminium Body, Voltage 230vAC 50-60Hz6.0 Bar51
1.25" BSP010.0138.001MSVM114/6BAluminium Body, Voltage 230vAC 50-60Hz6.0 Bar51
1.5" BSP010.0139.01MSVM112/6BAluminium Body, Voltage 230vAC 50-60Hz6.0 Bar51
2" BSP010.0140.001MSVM200/6BAluminium Body, Voltage 230vAC 50-60Hz6.0 Bar51
DN65 (PN Flange)010.0141.101MSVM212/6BAluminium Body, Voltage 230vAC 50-60Hz6.0 Bar51
DN80 (PN Flange)010.0142.101MSVM300/6BAluminium Body, Voltage 230vAC 50-60Hz6.0 Bar51
DN100 (PN Flange)010.0143.001MSVM400/6BAluminium Body, Voltage 230vAC 50-60Hz6.0 Bar51
DN125 (PN Flange)010.0144.001MSVM500/6BAluminium Body, Voltage 230vAC 50-60Hz6.0 Bar51
DN150 (PN Flange)010.0145.001MSVM600/6BAluminium Body, Voltage 230vAC 50-60Hz6.0 Bar51
Spare Part Numbers
Manufacturers Part NumberManufacturers Type NumberDescriptionGiuliani Anello Brochure Page (Refer to PDF Brochure Below)
014.0301.001511.2103.990MSVM/6B 3/4" to 2" BSP Voltage 230vAC 50-60Hz RAC Coil56
014.0303.001511.2102.990MSVM/6B DN65, DN80, DN100 Voltage 230vAC 50-60Hz RAC Coil56
014.0306.001511.0219.990MSVM/6B DN125, DN150 Voltage 230vAC 50-60Hz RAC Coil56
014.0312.0011729MSVM/6B 3/4" to 2" BSP Voltage 24vAC 50-60Hz RAC Coil56
014.0311.001511.2109.990MSVM/6B DN65, DN80, DN100 Voltage 24vAC/DC Coil56
014.0313.001511.0218.990MSVM/6B DN125, DN150 Voltage 24vAC/DC Coil56
014.0320.001511.2116.990MSVM/6B 3/4" to 2" BSP Voltage 12vDC Coil56
014.0321.001511.2177.990MSVM/6B DN65, DN80, DN100 Voltage 12vDC Coil56
014.0322.001511.0217.990MSVM/6B DN125, DN150 Voltage 12vDC Coil56
014.0275.0012105MSVM/6B 3/4", 3/4", 1", 1.25", 1.5", 2', DN65, BN80, DN100, DN125, DN150 Voltage 12vDC Coil Connectors56
014.0275.0012105MSVM/6B 3/4" to 2" Voltage 230vAC Coil Connectors56
014.0277.0012104MSVM/6B DN65, BN80, DN100, DN125, DN150 Voltage 230vAC Coil Connectors56
014.0275.0012105MSVM/6B 3/4" to 2" Voltage 24vAC Coil Connectors56
014.0276.0012108MSVM/6B DN65, DN80, DN100 Voltage 24vAC Coil Connectors56
014.0275.0012105MSVM/6B DN65, DN80, DN100 Voltage 24vDC Coil Connectors56
014.0279.001511.0070.000MSVM/6B DN125, DN150, Voltage 24vAC/DC Coil Connectors56
014.0034.0006218MSVM/6B Microswitch56

Below, Dimensions:

Download Giuliani Anello Brochure, 2015 PDFDownload Giuliani Anello Brochure, 2015 PDF

£0.00

Email us for availability

Product CodeGIU2A08L91
ConditionNew
