GMP, Self-Priming Centrifugal Pumps, Cast Iron With Bronze Impeller (for Petrol), ATEX Approved
GMP 'RED' ATEX Approved fuel transfer pumps, Cast Iron With Bronze Impeller suitable for Gasoline/Petrol.
Self priming, a non-return valve is fitted on the inlet of the pump body to avoid loss of liquid after the pump has stopped, making it easier to prime when the pump starts again.
- ATEX Approval: 94/9/CE (II 2G Ex d IIC T4)
Wetted Components| Pump Body | Cast Iron |
| Impeller Case | Cast Iron |
| Impeller Case Seal | Viton |
| Motor Shaft Seal | Viton |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impeller | Bronze, Open Impeller |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 12vDC, 24vDC, 230v50Hz 1Ph, 230/400v50Hz 3Ph, 400/690v50Hz 3Ph |
| kW | Various, Consult PDF Below |
| Amps | Various, Consult PDF Below |
| RPM | Various, Consult PDF Below |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | Various, Consult PDF Brochure Below (Ref. Page 9) |
| Discharge Pressure | Various, Consult PDF Brochure Below (Ref. Page 9) |
| Max Suction Lift (Dry) | None, requires initial prime via bleed port |
| Max Suction Lift (Wet) | 6 m |
| Inlet Fitting | 1"-4" BSP, Consult PDF Brochure Below (Ref. Page 9) |
| Outlet Fitting | 1"-4" BSP, Consult PDF Brochure Below (Ref. Page 9) |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | +60° Celcius |
| Min Liquid Temp | TBC |
| Max Room Temp | +40° Celcius |
| Min Room Temp | TBC |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Diesel |
| Ingress Protection | TBC |
Options Available| GMP Cat. No. | Pump Model No. | kW | Voltage | Port Size (BSPP Female) | Weight (Kg) | Dimensions (L*W*H) | Max. Head (m) | Max. Flow (lpm) |
| EAZN-BRONZE | DOMUS | 0.25 | 230v50Hz 1Ph | 1" | 12 | 220 * 360 * 270 | 15 | 35 |
| EAZ3-BRONZE | B11/2KQ-A | 0.75 | 230v50Hz 1Ph | 1.5" | 26 | 255 * 495 * 300 | 16 | 285 |
| 2140-BRONZE | B11/2KQ-A | 0.75 | 230/400v50Hz 3Ph | 1.5" | 26 | 255 * 495 * 300 | 16 | 285 |
| EA9D-BRONZE | B2KQ-A | 1.5 | 230v50Hz 1Ph | 2" | 31 | 280 * 520 * 300 | 19 | 450 |
| 2141-BRONZE | B2KQ-A | 1.5 | 230/400v50Hz 3Ph | 2" | 31 | 280 * 520 * 300 | 19 | 450 |
| EA9E-BRONZE | B3KQ-A | 2.2 | 230v50Hz 1Ph | 3" | 36 | 280 * 550 * 300 | 16 | 900 |
| 2138-BRONZE | B3KQ-A | 2.2 | 230/400v50Hz 3Ph | 3" | 36 | 280 * 550 * 300 | 16 | 900 |
| EBA5-BRONZE | B4KQ-A | 4 | 400-690v50Hz 3Ph | 4" | 116.5 | 360 * 700 * 455 | 15.6 | 1650 |

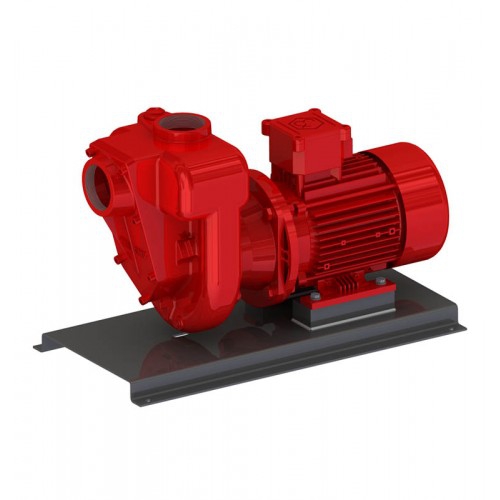

| 2139-BRONZE | B3XR-A | 4 | 400-690v50Hz 3Ph | 3" | 112 | 335 * 685 * 400 | 28.5 | 1250 |
| EAV4-BRONZE | B3XR-A | 5.5 | 400-690v50Hz 3Ph | 3" | 121 | 280 * 785 * 405 | 28.5 | 1420 |
| 2133-BRONZE | B3XR-A | 7.5 | 400-690v50Hz 3Ph | 3" | 139 | 280 * 785 * 405 | 34 | 1460 |
| EA9V-BRONZE | B4XR-A | 11 | 400-690v50Hz 3Ph | 4" | 192 | 365 * 950 * 455 | 32.5 | 2200 |
| EAV5-BRONZE | B4XR-A | 15 | 400-690v50Hz 3Ph | 4" | 202 | 365 * 950 * 455 | 34 | 2300 |
| EBA3-BRONZE | G2TMK-A | 2.2 | 230v50Hz 1Ph | 2" | 46 | 230 * 450 * 320 | 33.5 | 400 |
| EADZ-BRONZE | G2TMK-A | 2.2 | 230/400v50Hz 3Ph | 2" | 46 | 230 * 450 * 320 | 33.5 | 400 |
| EBA4-BRONZE | G2TMK-A | 3 | 230/400v50Hz 3Ph | 2" | 47 | 230 * 450 * 320 | 34 | 420 |
| EABL-BRONZE | G3TMK-A | 4 | 400-690v50Hz 3Ph | 3" | 118 | 280 * 650 * 410 | 35 | 900 |
| EABM-BRONZE | G3TMK-A | 5.5 | 400-690v50Hz 3Ph | 3" | 127 | 280 * 670 * 410 | 40 | 900 |
| EABN-BRONZE | G3TMK-A | 7.5 | 400-690v50Hz 3Ph | 3" | 142 | 280 * 670 * 410 | 47 | 900 |
| EABP-BRONZE | G3TMK-A | 11 | 400-690v50Hz 3Ph | 3" | 196 | 280 * 720 * 410 | 55 | 1150 |
| EB99-BRONZE | B3ZPM-A | 15 | 400-690v50Hz 3Ph | 3" | 255 | 470 * 1000 * 540 | 64 | 1250 |
| EB06-BRONZE | B3ZPM-A | 18.5 | 400-690v50Hz 3Ph | 3" | 292 | 470 * 1000 * 540 | 71 | 1250 |
| EAEZ-BRONZE | B3ZPM-A | 22 | 400-690v50Hz 3Ph | 3" | 320 | 470 * 1000 * 550 | 76 | 1250 |
| EBA1-BRONZE | B4ZPM-A * (2) (* CW Coupling) | 22 | 400-690v50Hz 3Ph | 4" | 280 | 550 * 1250 * 600 | 62 | 1700 |
| EBA2-BRONZE | B4ZPM-A * (2) (* CW Coupling) | 30 | 400-690v50Hz 3Ph | 4" | 350 | 550 * 1250 * 620 | 65 | 1750 |
Download GMP Pumps, Catalogue PDF
