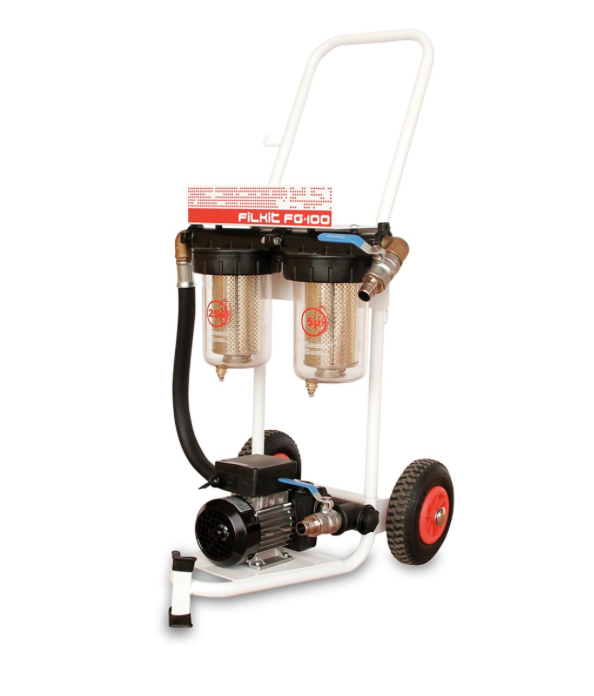

Inpro Portable Mini SAFA Filtration Equipment With Trolley
Portable MiniSAFA Filtration Equipment FG-100 x 2 + AG-46: Mobile filtration equipment 40 l/min.
This trolley filter has water absorption properties, providing a final product in optimum condition for tanks where fuel is stored for long periods of time. The Portable MiniSAFA filter unit is the ideal solution for maintenance work on fuel installations that are located in different places and need to be moved.
Composed of:
- Metal tube stand with handle and wheels for internal and external circulation (light and easy to handle).
- Hose reel bracket for hose rewinding and gun hanging.
- Self-priming pump AG-46 230 VAC. Filtering in two filtering stages:
- 25 µm (micron) FG-100BIO microfilter. 5 µm (micron) FG-100 microfilter.
- Shut-off valve at pump inlet and filter outlet.
- Pre-filter FUP-1 at the pump inlet.
| Description | Inpro Code |
| Structure with Tray | 01110000022666 |
| Particle filter 1" BSP (Aspiration) | 01110005010005 |
| Conditioner 1" | 05040000130004 |
| Motor Pump Iron 50 230 Vac | 06060007046370 |
| Non-return Valve 1" | 01070000001000 |
| Flow Detector | 01150000010001 |
| Decanter Filter (5 um) | 01110009011210 |
| Electrodes | 01120000020600 |
| Return 1" BSP | - |
| Control Box | - |
| NFC Timer | 02010000932290 |
| Contactor | 02030000001110 |
| Purge / Automatic Discharge (*) | - |
| Solenoid Discharge (*) | - |
| Pump Water - Discharge Piston | - |
