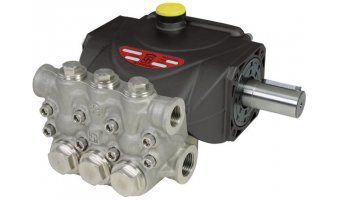

Interpump SS1 53 Series, Stainless Steel Piston Pump, 1000 PSI for High Pressure Reverse Osmosis RO Systems

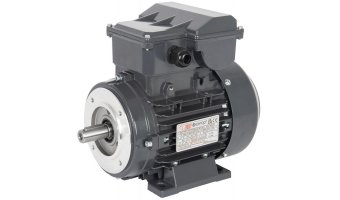

Interpump SS1 53-Series Stainless Steel Piston Pump, coupled with a ZF070 Motor Mounting Flange, to a TEC 604-1060 Continuous Duty Electric Drive Motor, 240v50Hz1Ph
Suitable for pumping 'raw' fresh and salt (sea) water from Rivers and the Ocean, to feed a High Pressure Reverse Osmosis Membrane.
Requires pre-filtration to 20 microns, pump is supplied only with a 1000 Micron Y-Strainer to stop ingress of system debris. We could quote for this or you can source locally or online.
Complete with 1/2"NB 316 Stainless Steel, Y-Type Strainer of 1000 Micron, on the Suction Side.

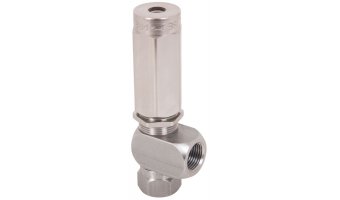

Complete with SMC 555 Series, 3/8"NB 316 Stainless Steel, Pressure Regulator Valve on the Pressure Side.
Not supplied with 3/8"NB high pressure hose on the outlet side as users require different lengths. We could quote for this or you can source locally or online.
Not supplied with Pressure Gauge
Overall Assembly Specification:
- Stainless Steel AISI 316L Wetted Components Throughout
- NBR/Buna Seals
- Max Pressure 70 Bar (1015 PSI)
- Pressure can be reduced with built-in pressure regulator valve.
- Max Flow at Max Pressure 7 LPM
- Max Water Temperature 82c
- 240vAC, 50Hz, 1Ph, 4-Pole Motor
- 1450 RPM
- 2.0 kW, 2.7 HP
- 1/2"BSP Female Inlet
- 3/8"BSP Female Outlet
- 1000 Micron (1mm) Inlet Strainer
Download Interpump SS1 53 Series - User Manual PDF
Download Interpump - General Manual PDF
Download TEC Motor - User Manual PDF
Download TEC Motor - Wiring Diagram PDF
Download TEC Motor - CE Certificate PDF
Download TEC Motor Mounting Flange - Data sheet PDF
Download SMC Series 555 Pressure Regulator - Data sheet PDF
