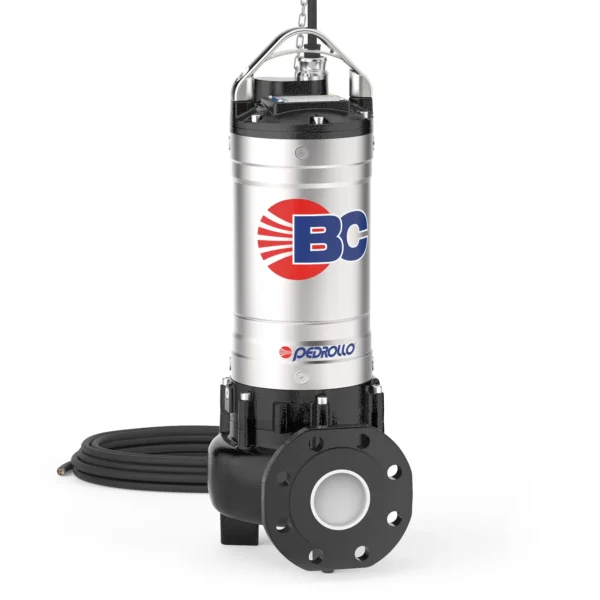

Pedrollo BC4 Submersible Pump - 4 Poles
Performance Range
- Flow rate up to 1200 l/min (72 m3/h)
- Head up to 6 m
Installation And Use
The BC4 series is constructed from thick stainless steel and cast iron, offering exceptional robustness, abrasion resist- ance, and durability. Equipped with a TWO-CHANNEL im- peller, the pumps are designed to drain sewage, sludge- mixed water, and activated and putrid sludge. They are suitable for a wide range of applications, including sewers, tunnels, excavations, canals, and underground parking facilities.
Electric Motor
The electric motor is safeguarded by a special three- phase thermal protector, situated within the motor, which activates in case of overheating or abnormal power consumption.
Includes
Power cable length 10 m.
Application Limits
- Depth below water level up to 10 m (with an appropriately sized power cable)
- Liquid temperature up to +40 °C
- Capable of processing suspended solids up to Ø 50 mm
- Minimum immersion for continuous service: 500 mm
Available Upon Request
Different voltage requirements 60 Hz frequency.
Wetted Components| Pump Body | Cast Iron (Painted) |
| Impellor Case | Cast Iron (Painted) |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Brass |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 110v, 230v, 415v / 50Hz |
| kW | 0.37-2.2 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | 40 lpm @ 5 m head |
| Discharge Pressure | 9.0 Bar / 130.5 PSI |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 8 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 90 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 40 Celcius |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Water |
| Ingress Protection | IP44 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
