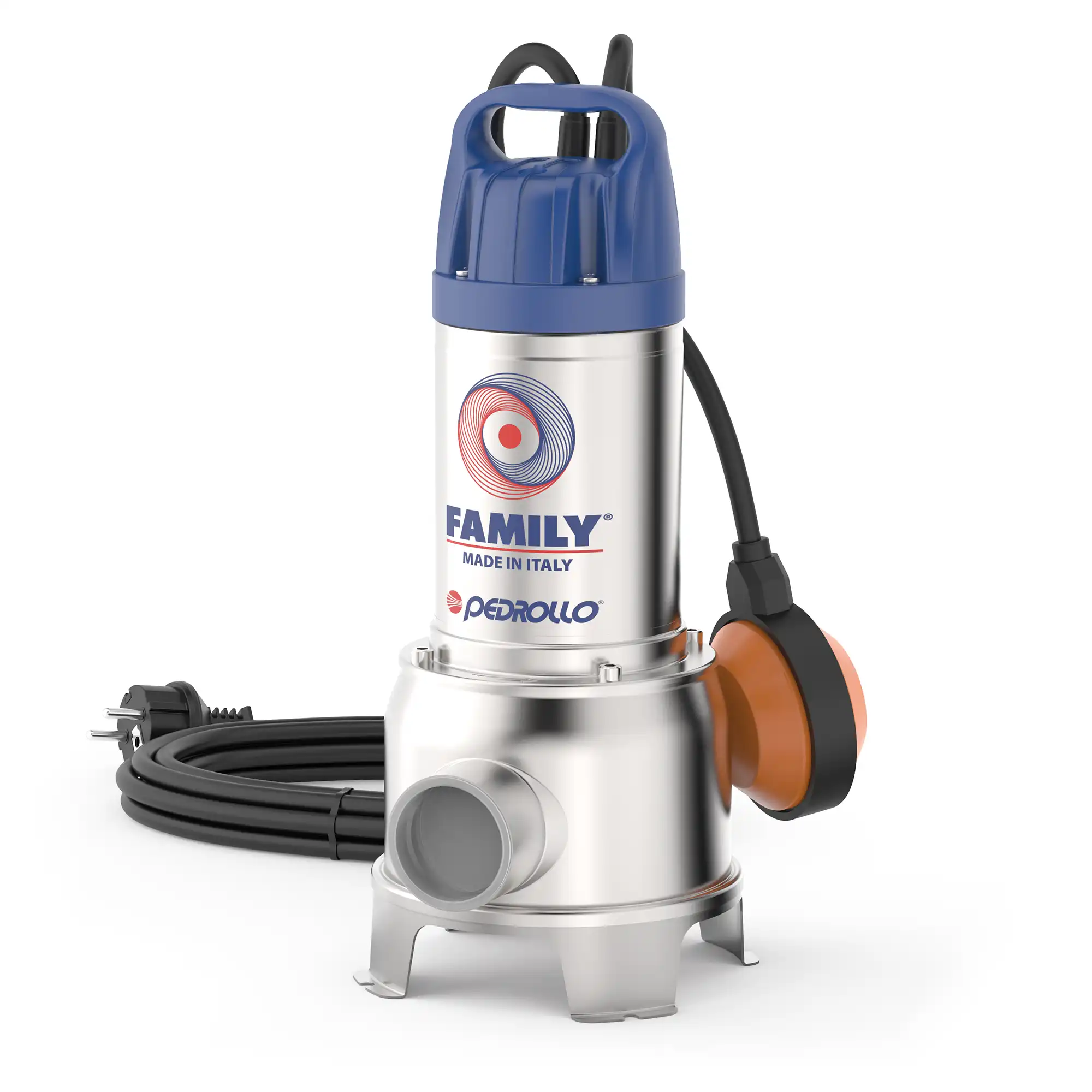

Pedrollo FAMILY Submersible Pump
Performance Range
- Flow rate up to 250 l/min (15 m³/h)
- Head up to 10 m
Installation And Use
The FAMILY pump is designed for dirty water and sewage drainage in domestic settings, capable of handling suspended solids up to 30 mm in diameter. It’s easy to operate and reliable in automated fixed installations.
Includes
- 5 m power cable
- Float switch
- Rubber element holder
Application Limits
- Depth below water level up to 5 m
- (with an appropriately sized power cable)
- Liquid temperature up to +40 °C
- Capable of processing suspended solids up to Ø 30 mm
- Minimum immersion for continuous service: 160 mm
Available Upon Request
- Technopolymer impeller (economic)
- Pumps with 10 m power cable
- Different voltage requirements 60 Hz frequency
Wetted Components| Pump Body | Cast Iron (Painted) |
| Impellor Case | Cast Iron (Painted) |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Brass |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 110v, 230v, 415v / 50Hz |
| kW | 0.37-2.2 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | 40 lpm @ 5 m head |
| Discharge Pressure | 9.0 Bar / 130.5 PSI |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 8 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 90 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 40 Celcius |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Water |
| Ingress Protection | IP44 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
