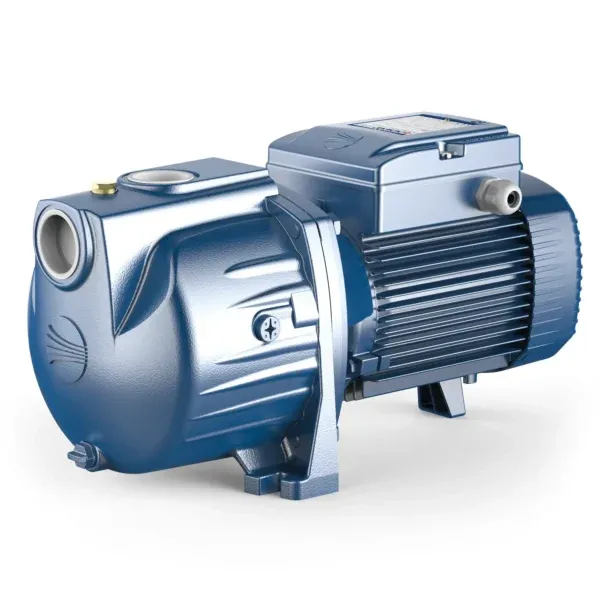

Pedrollo Sprinkler Self Priming Centrifugal Pump
Performance Range
- Flow rate up to 300 l/min (18.0 m3/h)
- Head up to 25.5 m
Installation And Use
A versatile self-priming pump designed to effortlessly draw water, even when air is present in the liquid.
With its reliable performance and user-friendly operation, Sprinkler is ideal for various applications, including domestic, civil, and irrigation.
Electric Motor
The three-phase pumps are equipped with newly devel- oped electric motors designed to work with inverters, which guarantee stable and quiet operation. Efficiency class IE3 for three-phase motors and IE2 for single-phase motors, with class F insulation and IPX4 protection.
Application Limits
- Manometric suction head up to 9 m (HS)
- Liquid temperature between -10 °C and +40 °C
- Ambient temperature up to +40 °C
- Maximum working pressure 10 bar
Available Upon Request
- IPX5 protection
- Other voltage and frequency 60 Hz
Wetted Components
Pump Body | Cast Iron (Painted) |
Impellor Case | Cast Iron (Painted) |
Impellor Case Seal | NBR |
Motor Shaft Seal | NBR |
Vanes | Not Present |
Vane Springs | Not Present |
Rotor / Gear / Impellor | Brass |
Shaft Key / Nut | 304 Stainless Steel |
Motor Shaft | 304 Stainless Steel |
Bypass Valve Piston | Not Present |
Bypass Valve Seal | Not Present |
Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 110v, 230v, 415v / 50Hz |
| kW | 0.37-2.2 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | 40 lpm @ 5 m head |
| Discharge Pressure | 9.0 Bar / 130.5 PSI |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 8 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 90 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 40 Celcius |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Water |
| Ingress Protection | IP44 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
