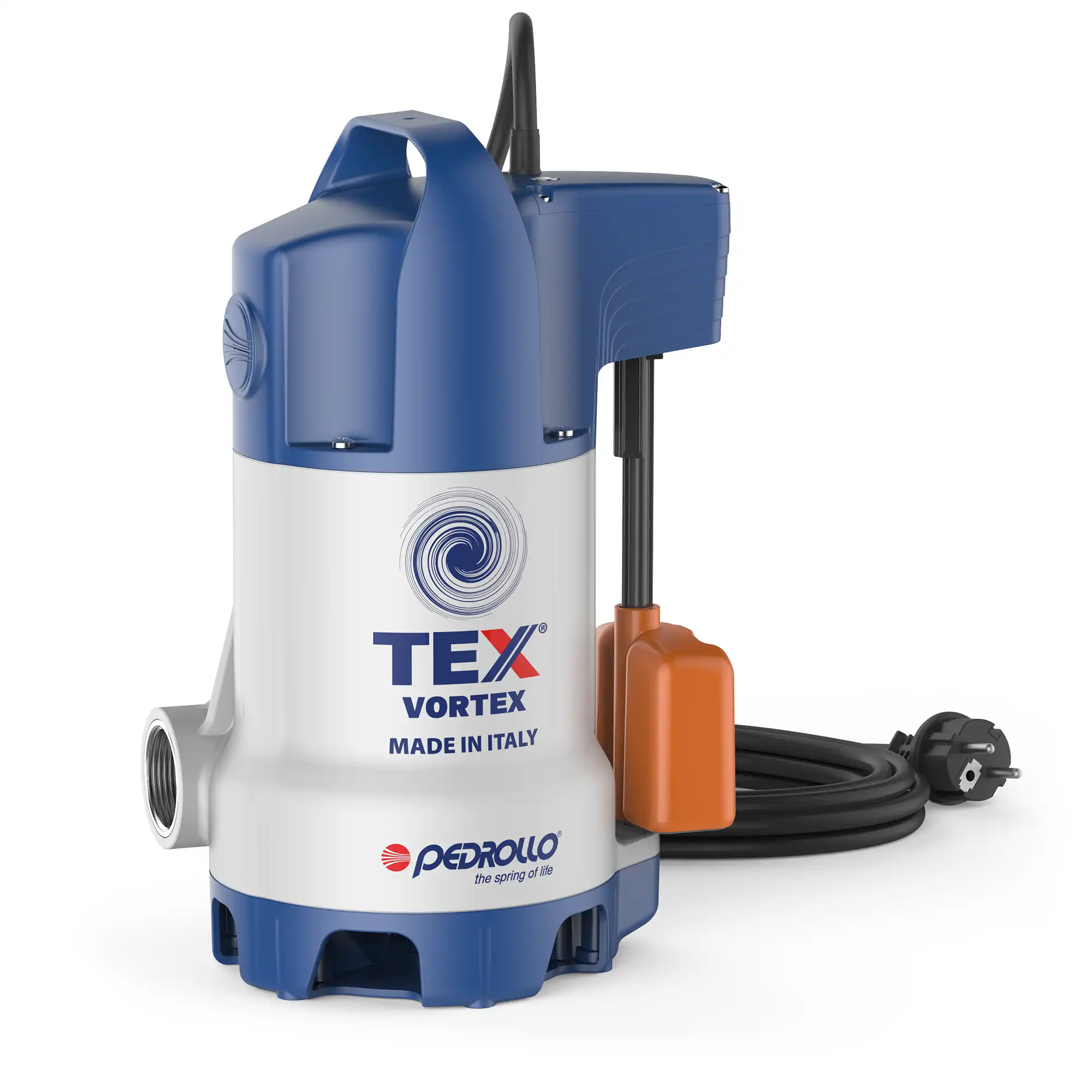

Pedrollo TEX Submersible Pump For Drainage
- Innovative, patented design
- Premium quality
- Ideal for sumps with limited space
- Robust and compact
- Equipped with retractable handle
- Exceptional performance
Performace Range
- Flow rate up to 240 l/min (14.4 m3/h)
- Head up to 10 m
Installation And Use
TEX electric sewage pumps offer a dependable solution for wastewater management. Primarily utilized in station- ary setups to remove water from sumps, they are also suit- able for portable applications, such as tanks, reservoirs, ditches, or during floods. TEX pumps offer increased power and a larger clearance area, while the oversized motor prevents overheating even when operating without cover.
- Key features include a spacious side drain for rapid water evacuation with minimal energy consumption.
- Additionally, TEX pumps come equipped with a com- pact, integrated magnetic float switch that ensures complete electrical safety and enables usage in con- fined spaces, including sumps as small as 220 mm on each side.
Application Limits
- Maximum operating depth below water level up to 5 m (with an appropriately sized power cable)
- Liquid temperature up to +40 °C and up to +90 °C for short bursts (up to 3 minutes max) for intermittent service
- Capable of processing suspended solids up to Ø 30 mm
- Draining capability up to 35 mm from the bottom
Includes
- 5 m power cable
- An adjustable vertical magnetic float level switch
- Hose connector Ø 40 mm
Available Upon Request
- Mechanical seal options available
- Pumps with 10 m power cable
- Different voltage requirements 60 Hz frequency
Wetted Components| Pump Body | Cast Iron (Painted) |
| Impellor Case | Cast Iron (Painted) |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Brass |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 110v, 230v, 415v / 50Hz |
| kW | 0.37-2.2 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | 40 lpm @ 5 m head |
| Discharge Pressure | 9.0 Bar / 130.5 PSI |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 8 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 90 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 40 Celcius |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Water |
| Ingress Protection | IP44 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
