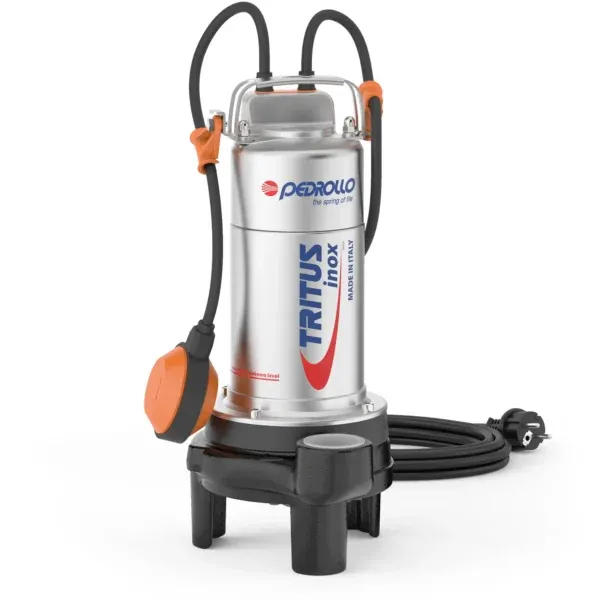

Pedrollo Tritus Inox Submersible Pump With Grinder

Perfromance Range

• Flow rate up to 410 l/min (24.6 m3/h)
• Head up to 44.5 m

Installation And Use

 The Tritus is constructed from thick cast iron, offering exceptional robustness, abrasion resistance, and longevity. The pumps are equipped with a robust, hardened stain- less steel blade, expertly designed to cut through solids and fibers found in domestic and civil wastewater and sewage, for pressurized transfer of materials into sewage systems via small-diameter piping.

Includes

• Power cable length 10 m
•  Float switch (exclusive to single-phase models)
• Switchbox compatible with single-phase versions

Application Limits

• Depth below water level up to 10 m (with an appropriately sized power cable)
• Liquid temperature up to +40 °C
• Draining capability from bottom up to:

- 85 mm for 0.75, 0.9, 1.1, 1.3

- 95 mm for 1.5, 2.2, TR 2.2 AP, TR 3 AP, TR 3, TR 4

•  Minimum immersion for continuous service:

- 300 mm for 0.75, 0.9, 1.1, 1.3 –

- 350 mm for 1.5, 2.2, TR 2.2 AP, TR 3 AP, TR 3, TR 4

Available Upon Request

Different voltage requirements 60 Hz frequency.

For 110v 50Hz, and 60Hz motors please email us for availability and price.

Download Pedrollo Catalogue 50Hz PDF

Download Pedrollo Catalogue 60Hz PDF
