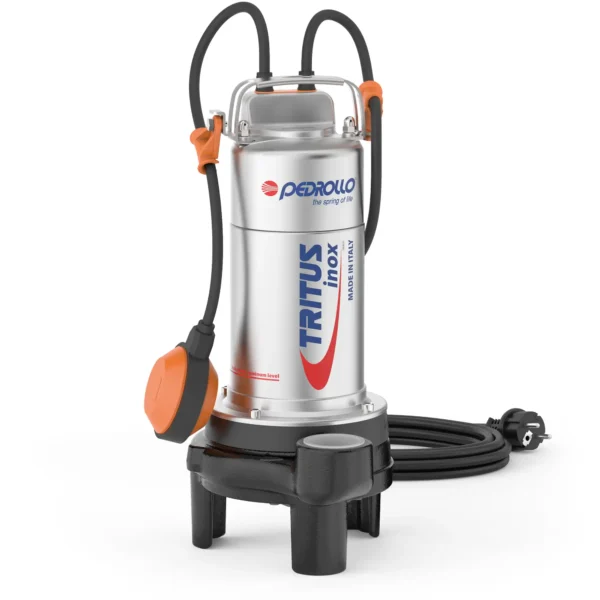

Pedrollo Tritus Inox Submersible Pump With Grinder
Performance Range
• Flow rate up to 250 l/min (15 m³/h)
• Head up to 24 m
Installation And Use
The TRITUS-INOX series is equipped with a robust, hard- ened stainless steel blade, expertly designed to cut through solids and fibers found in domestic wastewater and sewage, for pressurized for pressurized transfer of ma- terials into sewage systems via small-diameter piping.
Includes
- Power cable length 10 m
- Float switch (exclusive to single-phase models)
Application Limits
- Depth below water level up to 5 m (with an appropriately sized power cable)
- Liquid temperature up to +40 °C
- Bottom drainage level up to 85 mm
- Minimum immersion for continuous service: 300 mm
Available Upon Request
- Different voltage requirements 60 Hz frequency
- Three-phase pumps
- For TIGm 1.1 and TIGm 1.3 external control cabinet for increased operational safety due to special capacitor that significantly increases torque. The panel includes the manual reset motor protection switch.
Wetted Components| Pump Body | Cast Iron (Painted) |
| Impellor Case | Cast Iron (Painted) |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Brass |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 110v, 230v, 415v / 50Hz |
| kW | 0.37-2.2 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | 40 lpm @ 5 m head |
| Discharge Pressure | 9.0 Bar / 130.5 PSI |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 8 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 90 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 40 Celcius |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Water |
| Ingress Protection | IP44 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
