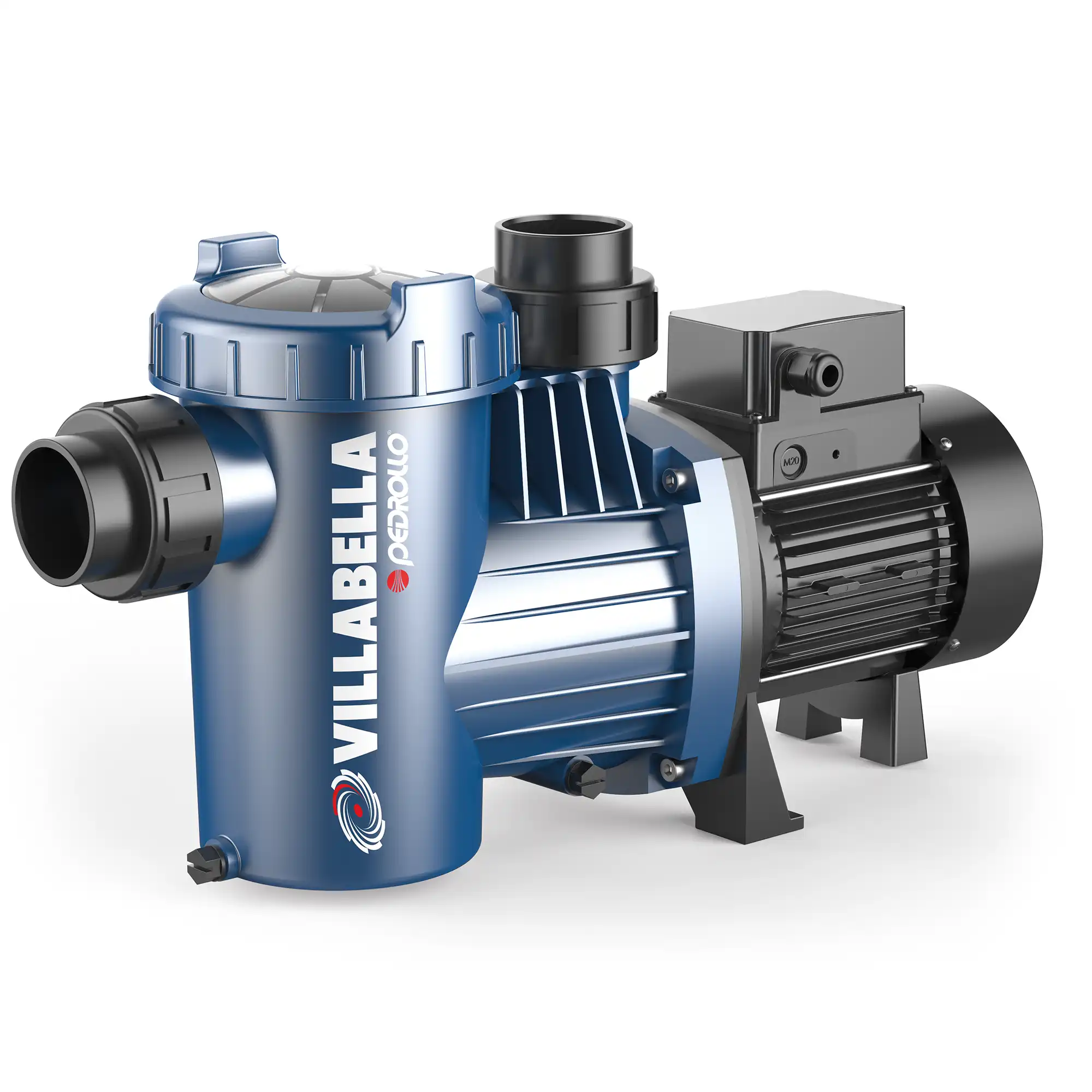

Pedrollo Villabella Self Priming Swimming Pool Pump
- Robust electric pumps constructed with high-quality components and thick materials for extended durability and quiet operation
- Pre-filter equipped with a transparent cover for easy visual inspection, featuring an extra-large filter basket to reduce cleaning frequency
- High resistance to heat, chemicals, and salt corrosion
- Motor case painted with cataphoresis for added protection
- Supplied with 2" GAS threaded ISO 228/1 connection fittings and AISI 304 screws
Performance Range
- Flow rate up to 600l/min (36 m3/h)
- Head up to 21 m
Installation And Use
Self-priming pump with a built-in filter, designed for water circulation in residential swimming pools up to 135 m3.
Application Limits
- Manometric suction head up to 4m (HS)
- Liquid temperature up to +40C
- Ambient temperature up to +40C
- Maximum working pressure 2.5 bar
- Swimming pool water (PH 6.5 - 8.4)
Available Upon Request
- Smooth connection fitting 63 mm
- Smooth connection fitting 2" BS
Key to open the pre-filter cover included.
Wetted Components| Pump Body | Cast Iron (Painted) |
| Impellor Case | Cast Iron (Painted) |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Brass |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 110v, 230v, 415v / 50Hz |
| kW | 0.37-2.2 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | 40 lpm @ 5 m head |
| Discharge Pressure | 9.0 Bar / 130.5 PSI |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 8 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 90 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 40 Celcius |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Water |
| Ingress Protection | IP44 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
