Pedrollo VSP Pumps With Inverters

Installation And Use

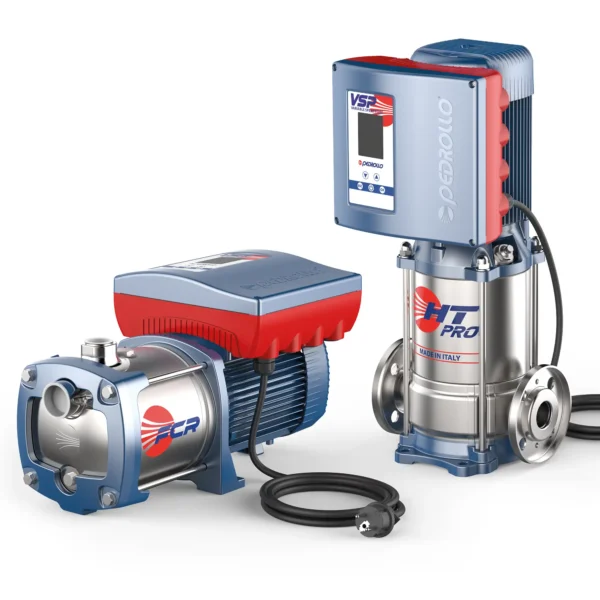

VSP is a versatile pumping unit designed for various applications. It's ideal for residential and commercial use, pro- viding water supply and pressure boosting. VSP seamlessly integrates with any pressurization system, including existing ones, ensuring maximum comfort and enabling significant energy savings.

Product Description

VSP is a system comprising a pump and an integrated frequency converter. Equipped with a pressure sensor, it ensures a constant pressure as the system's water demand fluctuates.

This ready-to-use product eliminates the need for configuration procedures. Users can adjust the working pressure and view operating parameters and alarm messages via the user interface. For advanced users, the system offers access to an advanced menu for modifying factory parameters through a guided procedure, allowing adaptation to specific plant conditions.

VSP is an intelligent pumping unit, equipped with:

• display and keypad allowing simple and intuitive configuration and reading of operating parameters;
• interface ports for additional analogue and digital in- put and output signals;
• PFC technology maintains hydraulic performance un- affected even when supply voltages vary within ±20% of the nominal value;
• RS 485 communication for connection to a second device in parallel.
• Integrated protection against:
• dry running
• overcurrent
• overvoltage and undervoltage
• combustion chamber
• short circuit
• lack of phases in the connections (for three-phase version)

Technical Data

• Power supply: – 1~ 230V±10% or 3~ 400V±10% – Frequency: 50/60 Hz
• Please refer to the technical data of the specific electro-pumps for liquid temperature, ambient temperature, and protection degree

Key Features

• Easy installation, configuration, and adjustment. ※ Greater comfort, thanks to optimized performance and low noise levels.
• Energy saving reduces startup and operating currents, ensuring.
• Automatic compensation for fluctuations in the supply voltage.
• Communication with another device to enhance system capabilities.
• Intelligent management of control and intervention in case of anomalies.
