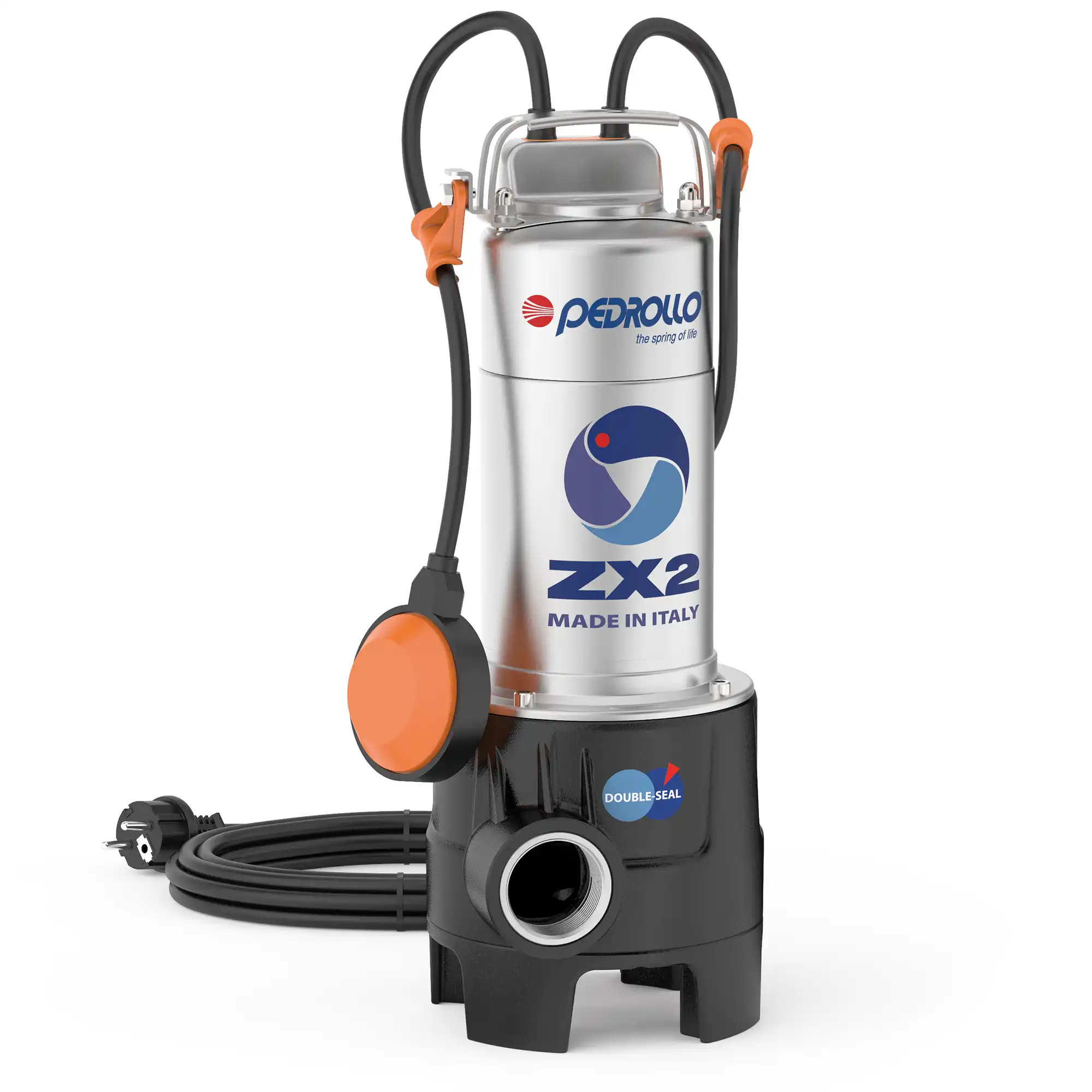

Pedrollo ZXm2 Submersible Pump
Performance Range
- Flow rate up to 400 l/min (24 m³/h)
- Head up to 13 m
Installation and Use
ZXm2 pumps are designed for sewage drainage in domestic and civil settings.
Featuring a VORTEX impeller, these pumps efficiently handle solids up to 40 mm in diameter, with a unique design that prevents clogging.
Inludes
- 5 m power cable
- Float switch
- Hose connector Ø 50 mm
Application Limits
- Maximum operating depth below water level up to 5 m (with an appropriately sized power cable)
- Liquid temperature up to +40 °C
- Suspended solids transfer:
- up to Ø 30 mm for ZXm 2/30
- up to Ø 40 mm for ZXm 2/40
- Minimum immersion for continuous service:
- 265 mm for ZXm 2/30
- 275 mm for ZXm 2/40
Available Upon Request
- Pumps with 10 m power cable
- Different voltage requirements 60 Hz frequency
Wetted Components| Pump Body | Cast Iron (Painted) |
| Impellor Case | Cast Iron (Painted) |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Brass |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 110v, 230v, 415v / 50Hz |
| kW | 0.37-2.2 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | 40 lpm @ 5 m head |
| Discharge Pressure | 9.0 Bar / 130.5 PSI |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 8 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 90 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 40 Celcius |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Water |
| Ingress Protection | IP44 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
