Piusi K24 Turbine Flow Meters for Adblue / Urea
K24 flow meter calibrated for use with Adblue, can also be used with any other liquid that is not chemically agressive to the meters componemt materials. When used with other liquids of a different viscosity/SG, field calibration ma be required for best accuracy, instructions for this are included with the meter.
Supplied complete with digital display, showing;
- Resettable 5-Digit batch total with floating decimal point between 0.1 to 99999
- Non resettable total, 6-digit to 999999
Wetted Components| Housing | Glass Reinforced Polypropylene |
| Seals | Viton |
| Turbine | Glass Reinforced Polypropylene |
| Turbine Shaft | Stainless Steel |
Technical Information - Local Display Version| Model Number | K24 Urea (F0040710A) |
| Display | Digital |
| Power Source | 2x1.5vDC Batteries |
| Power Consumption | Unknown |
| Output Signal | None |
| Pulses Per Litre | None |
| Accuracy | ±1.0% |
| User Calibration | Yes |
| Inlet / Outlet Fittings | 1" BSP Male, CW 1x 316SS Socket |
| Min Flowrate | 6 lpm |
| Max Flowrate | 120 lpm |
| Max Pressure | 20 Bar / 300 PSI |
| Pressure Loss | 0.15 Bar / 2.17 PSI |
| Temperature Range | Unknown |
| Weight | 0.4 Kg |

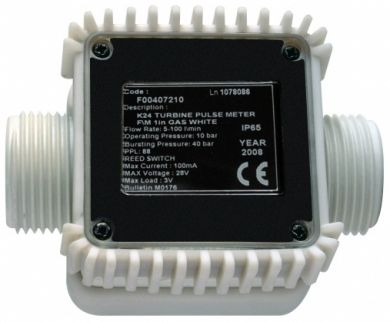

Shown Below: Piusi K24 Urea Pulse Meter
Download Piusi K24 Urea Meter Catalogue Page PDF
