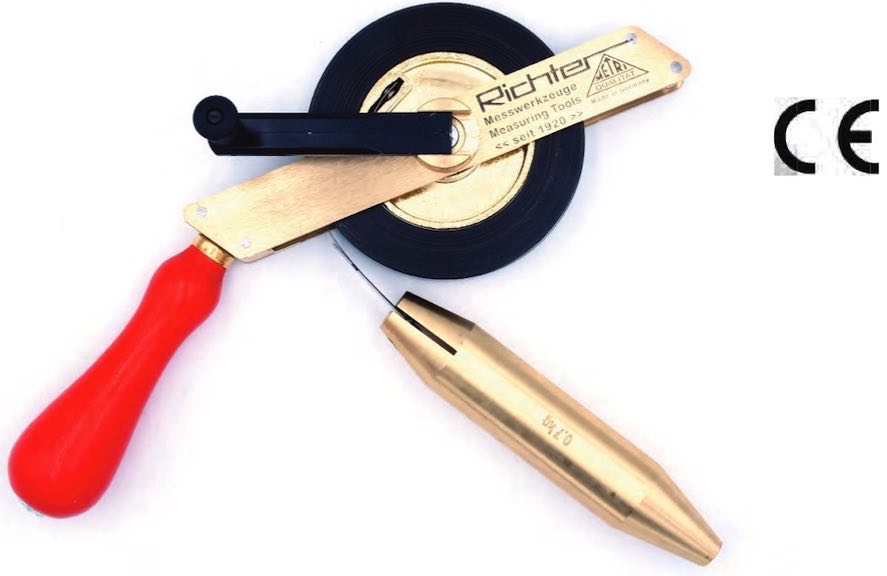

Richter Dipping Tape, Brass Frame, White Enamel Steel Tape, Accuracy Class S (CE Marked)
ALWAYS EMAIL US FOR BEST PRICES ON RICHTER!
Supplied as standard with:
- High Quality Brass Frame, with High Impact Wooden Handle.
- White Enamel Coated, Carbon Steel Tape (appears as black markings, with black numerals, and red numerals for meters).
To be added seperately, if required:
- Weight.
- 'MSE' type frame with grounding cable and clip.
- Calibration Certificate. 1 Certificate is required per 1 Tape. Price is per certificate.
- Conformity Certificates: KON1 For orders of single or multiple tapes, one certificate per order. Or KON2 for tapes which have been Calibrated, and in that process, numbered, references the individual tape number in the certificate. Available per tape or per order showing all tape numbers on 1 certificate. Prices are per certificate.
- As standard the tape will most commonly be supplied rolling down from the tape reel, it can be positioned either in this way or fed through the guide at the front of the frame on site. If a particular tape position is required upon receipt, then this can be requested at no cost - Suffix 'G' for tape rolling down from the tape reel, or Suffix 'F' for tape rolling out through the guide at the front of the frame. Example application of Suffix > MS(F)
Features:
- Conforms to EC Accuracy Class S, CE Marked (Equivalent to former initial calibration performed by Calibration Office)
- NOT IPM Approved
- NOT Verifiable
- 13 mm Wide, 0.2 mm Thick Hardened Steel Tape
- S414W Tape, Single Side Graduations
Reel & Tape Specifications| Part Number | Graduations | Frame Type | Length | Richter Brochure Page |
| FR-D-S414W-MS-10 | Single Side, Metric | MS - Brass | 10 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MS-15 | Single Side, Metric | MS - Brass | 15 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MS-20 | Single Side, Metric | MS - Brass | 20 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MS-25 | Single Side, Metric | MS - Brass | 25 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MS-30 | Single Side, Metric | MS - Brass | 30 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MS-50 | Single Side, Metric | MS - Brass | 50 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MSE-10 | Single Side, Metric | MSE - Brass with Grounding Cable & Clip | 10 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MSE-15 | Single Side, Metric | MSE - Brass with Grounding Cable & Clip | 15 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MSE-20 | Single Side, Metric | MSE - Brass with Grounding Cable & Clip | 20 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MSE-25 | Single Side, Metric | MSE - Brass with Grounding Cable & Clip | 25 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MSE-30 | Single Side, Metric | MSE - Brass with Grounding Cable & Clip | 30 m | 3.16 (TDT & WMD) |
| FR-D-S414W-MSE-50 | Single Side, Metric | MSE - Brass with Grounding Cable & Clip | 50 m | 3.16 (TDT & WMD) |
Refill Tape Specifcations| Part Number | Graduations | Length | Richter Brochure Page |
| FR-D-S414W-MSa-10 | Single Side, Metric | 10 m | Not Featured |
| FR-D-S414W-MSa-15 | Single Side, Metric | 15 m | Not Featured |
| FR-D-S414W-MSa-20 | Single Side, Metric | 20 m | Not Featured |
| FR-D-S414W-MSa-25 | Single Side, Metric | 25 m | Not Featured |
| FR-D-S414W-MSa-30 | Single Side, Metric | 30 m | Not Featured |
| FR-D-S414W-MSa-50 | Single Side, Metric | 50 m | Not Featured |
Weight Specifications| Part Number | Material | Weight | Graduations | Length | Diameter | Connection Method | Richter Brochure Page |
| FR-WEIGHT-A | Brass | 625 G | Single Side | 100 mm | 45 mm | Rivet | 3.12 (TDT & WMD) 2.7 (Gen.) |
| FR-WEIGHT-B-1 | Brass | 675 G | Single Side | 156 mm | 30 mm | Nickle Plated Clasp | 3.8 (TDT & WMD) 2.7 (Gen.) |
| FR-WEIGHT-C-1 | Brass | 200 G | Single Side | 70 mm | 20 mm | Rivet | 3.8 (TDT & WMD) 2.7 (Gen.) |
| FR-WEIGHT-D-1 | Brass | 400 G | Single Side | 171 mm | 22 mm | Nickle Plated Clasp | 3.8 (TDT & WMD) 2.7 (Gen.) |
| FR-WEIGHT-E-1 | Brass | 400 G | Single Side | 103 mm | 25 mm | Grub Screw | 3.8 (TDT & WMD) 2.7 (Gen.) |
| FR-WEIGHT-F | Brass | 1000 G | Single Side | 100 mm | 45 mm | Grub Screw | 3.8 (TDT & WMD) 2.7 (Gen.) |
| FR-WEIGHT-G-1 | Brass | 500 G | Single Side | 171 mm | 25 mm | Nickle Plated Clasp | 3.9 (TDT & WMD) 2.8 (Gen.) |
| FR-WEIGHT-H-1 | Brass | 700 G | Single Side | 150 mm | 30 mm | Grub Screw | 3.9 (TDT & WMD) 2.8 (Gen.) |
| FR-WEIGHT-I-1 | Stainless Steel 4021 | 400 G | Single Side | 103 mm | 25 mm | Grub Screw | 3.9 (TDT & WMD) 2.8 (Gen.) |
| FR-WEIGHT-K-1 | Brass | 500 G | Single Side | 150 mm | 25 mm | Grub Screw | 3.9 (TDT & WMD) 2.8 (Gen.) |
| FR-WEIGHT-L-1 | Brass | 400 G | Single Side | 121 mm | 25 mm | Nickle Plated Clasp | 3.9 (TDT & WMD) 2.8 (Gen.) |
| FR-WEIGHT-M | Stainless Steel 4021 | 1200 G | Single Side | 103 mm | 25 mm | Grub Screw | 3.9 (TDT & WMD) 2.8 (Gen.) |
| FR-WEIGHT-P | Brass | 400 G | Single Side | 103 mm | 25 mm | Grub Screw | 3.10 (TDT & WMD) 2.8 (Gen.) |
| FR-WEIGHT-T | Stainless Steel 4021 | 1000 G | Single Side | 100 mm | 45 mm | Grub Screw | 3.10 (TDT & WMD) 2.9 (Gen.) |
| FR-WEIGHT-U | Stainless Steel 4021 | 400 G | Single Side | 121 mm | 25 mm | Nickle Plated Clasp | 3.10 (TDT & WMD) 2.9 (Gen.) |
| FR-WEIGHT-W | Brass | 1500 G | Single Side | 156 mm | 45 mm | Nickle Plated Clasp | 3.10 (TDT & WMD) 2.9 (Gen.) |
| FR-WEIGHT-X | Stainless Steel 4021 | 700 G | Single Side | 103 mm | 35 mm | Grub Screw | 3.10 (TDT & WMD) 2.9 (Gen.) |
| FR-WEIGHT-Y-1 | Stainless Steel 4021 | 700 G | Single Side | 150 mm | 30 mm | Grub Screw | 3.10 (TDT & WMD) 2.9 (Gen.) |
| FR-WEIGHT-S034 | Brass | 1200 G | Single Side | 246 mm | 30 mm | Push-Button Release | 3.11 (TDT & WMD) 2.9 (Gen.) |
| FR-WEIGHT-S034R | Stainless Steel 4021 | 1200 G | Single Side | 246 mm | 30 mm | Push-Button Release | 3.11 (TDT & WMD) 2.9 (Gen.) |
| FR-WEIGHT-S059-1 | Brass | 300 G | Single Side | 91 mm | 25 mm | Nickle Plated Clasp | 3.11 (TDT & WMD) |
| FR-WEIGHT-S059SP | Brass | 300 G | Single Side | 91 mm | 25 mm | Nickle Plated Clasp | 3.11 (TDT & WMD) |
| FR-WEIGHT-S059R-1 | Stainless Steel 4021 | 300 G | Single Side | 91 mm | 25 mm | Nickle Plated Clasp | 3.11 (TDT & WMD) |
| FR-WEIGHT-S059RSP | Stainless Steel 4021 | 300 G | Single Side | 91 mm | 25 mm | Nickle Plated Clasp | 3.11 (TDT & WMD) |
Shown Below, All Weight Options
Replacement Winders| Part Number | Type |
| FR-EMPTY-F.W-30 | Empty Frame Winder, 30m Capacity |
| FR-EMPTY-F.W-50 | Empty Frame Winder, 50m Capacity |
| FR-EMPTY-F.W-MSE30 | Empty Frame Winder, 30m Capacity, with Grounding Cable & Clip |
Shown Below, Nickle Plated Clasp
Shown Below, S414W Tape
Shown Below, MSE Frame with Grounding Cable & Clip
Shown Below, 4 Digit I.D. Number, stamped onto tape crimp during Factory Calibration Process, pictured without, and with number.
Shown Below, Optional Carry Case
