TODO NGXM Marine Breakaway Couplings, for Liquids and Gases
ALWAYS EMAIL US FOR BEST PRICES ON TODO!
The TODO NGXM Marine Break-Away Coupling has been designed for loading and unloading hazardous liquids on ships and/or barges. The Marine version of TODO’s tried and tested Standard NGX Break-Away Coupling has a more robust design and has been engineered to withstand harsh marine conditions. If excessive load is detected, the coupler closes the valves and then allows disconnection.
The TODO NGXM Series Break-Away again takes the principles of the engineered NGX Series and makes the product suitable for offshore applications. The addition of five load pins protects the break pins against lateral forces (i.e. tidal and wave movement), resulting in a high performance Break-Away that will only separate due to an overload in straight pull force.
Features:

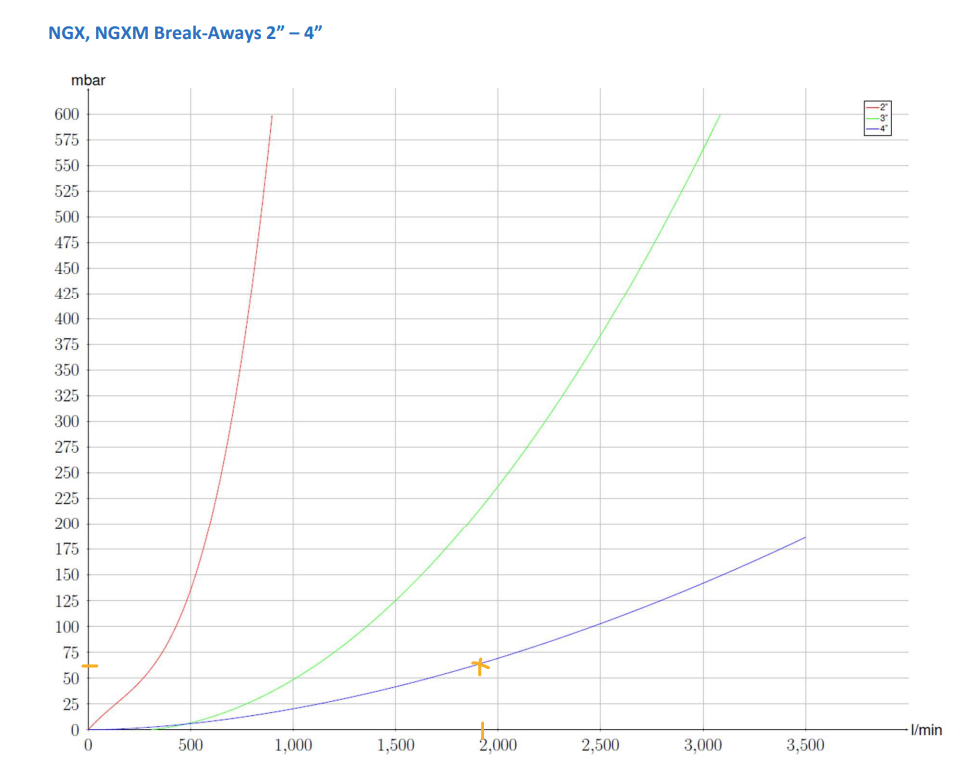

- High flow/low pressure drop
- Designed to resist axial force so that disconnect only occurs
- when subjected to straight pull forces
- Operates independently of shut-off safety systems and does not require an external power source
- Easy to re-set on site
Benefits:
- Faster loading/unloading due to the optimised flow rates offered
- Simple to retrofit onto Loading Arms
- Easier to handle when loading/unloading
- Reduced maintenance due to internal redesign and new seal placement
- Easy to reset on-site, saving time, saving money
Standards:
- 2014/68/EU – Pressure Equipment Directive
- 2014/34/EU – ATEX
- BS EN ISO9001:2015
Features:| Sizes: | DN50 2", DN80 3", and DN100 4" |
| Materials: | Body: Stainless Steel (316L) |
| Seals: | FKM (Viton) as standard. NBR (Nitrile), Chemraz, or Kalrez also available |
| Working Temperature | -20°C(-4°F)-+80°C(176°F) |
| Working pressure: | Up to 40 bar (580 psi) |
| Test pressure: | Up to 60 bar (870 psi) |
| Possible Break Angle | Straight Pull Only |
| End connections: | NPT / BSP / PN10/16 / PN25/40 / ANSI 150 / ANSI 300 / TTMA |
Suitable for flammable products, NGXM Marine Breakaway Couplings are not ATEX approved, but comply with the directive and fulfil its requirements. NGXM Marine Breakaway Couplings have been assessed by the manufacturer to be exempt from certification due to them having no components which under normal operation could create a source of ignition. For clarification of this see definition below;
Options| TODO Part Number | Unit Type | NB | Fitting Size | Fitting Type | Body Material | Internal Materials | Seals |
| NGXM4-AHAHW-4407 | Break-Away | 4 Inch | 4 Inch | NPT Female | Stainless Steel | Stainless Steel | Viton |
| NGXM4-AHAHW-4423 | Break-Away | 4 Inch | 4 Inch | NPT Female | Stainless Steel | Stainless Steel | Chemraz 505 |
| NGXM4-DHDHW-4407 | Break-Away | 4 Inch | 4 Inch | BS EN 1092-1 / PN25/40 Type B | Stainless Steel | Stainless Steel | Viton |
| NGXM4-DHDHW-4423 | Break-Away | 4 Inch | 4 Inch | BS EN 1092-1 / PN25/40 Type B | Stainless Steel | Stainless Steel | Chemraz 505 |
| NGXM4-GHGHW-4407 | Break-Away | 4 Inch | 4 Inch | Weld End | Stainless Steel | Stainless Steel | Viton |
