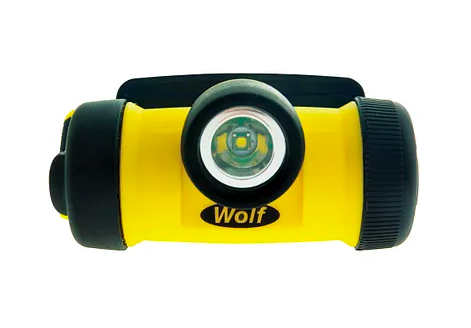

Wolf Safety Lamp Co, ATEX LED HT-400 Zone 0 Headtorch
The HT-400Z0 (Zones 0,1,2,21 & 22) is a compact and lightweight LED ATEX Head Torch and is ideal for safe, hands-free illumination in Hazardous Areas where access is difficult, requiring climbing or crawling.
Light Output / Power / Duration
- High power LED light source
- Up to 120 lumens light output
- Broad spot beam
- Powered by 3 X AAA Alkaline batteries
- Up to 8.5 hours duration
Certification
- ATEX, IECEX, UKEX Zone 0, 1, 2 and 21, 22
- T4 Temperature Class
- IP67 water and dust tight ingress protection
Features
- Hands free operation
- Single handed switching
- Light weight - only 90 grams including batteries
- Tilt adjustment for light direction
- Supplied with helmet clips for hard hat use
- Adjustable, removable headband
- Shatterproof polycarbonate lens
- Manufactured from robust, highly durable, high impact chemical resistant thermoplastic materials.
Specifications| Code - ATEX | II 1G2D |
| Code - Gas | Ex ia IIC T4 Ga IP67 |
| Code - Dust | Ex ib IIIB T125 Celcius Db |
| Type of Protection | ia/ib Intrinsic Satety |
| Area of Class (Gas) | Zones 0, 1 and 2 - Gas groups IIA, IIB, IIC |
| Temp Classification (Gas) | T4 |
| Ambient Temp | -20 to +40 Celcius |
| Area of Classification (Dust) | Zones 21 and 22 - Dust Groups IIA, IIB |
| Max. Surface Temp (Dust) | 125 Celcius |
| Certificate | Baseefa 10ATEX0067 / IECEx BAS 10.0023 / BAS21UKEX2436 |
| Enclosure | High Impact Thermoplastic, Chemical Resistant |
| Lens | Shatterproof Polycarbonate |
| Beam Type | Broad Spot with Wide Angle Fringe Light |
| Light Source - Type | High Power LED |
| Light Source - Output | Up to 120 lm |
| Light Source - Life | 25,000+ hours (fitted for life) |
| Power source - Part Number | 3 x LT - 401 (LR03 Cells) |
| Power source - Type | LR03 primary cells, to IEC 60086, Alkaline AAA |
| Power source - Volts | 3 x 1.5vDC |
| Light Duration | Up to 8.5 hours |
| Ingress Protection | IP67 |
| Weight (Inc Cells) | 0.090kg |
Supplied in boxes of 10 or multiples thereof, if you require less than 10 please email us and we will quote.
Download Wolf Safety Lamp Co, HT-400Z0 Head Torch - Brochure PDF
