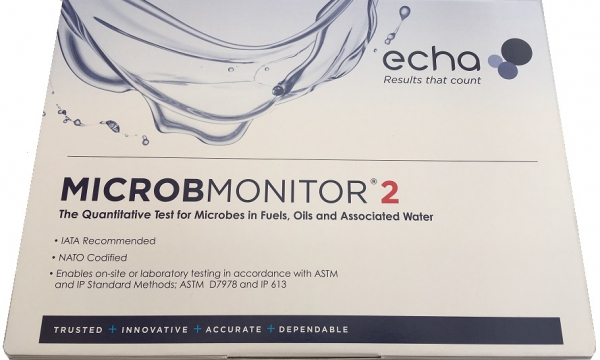

ECHA Microbiology, Microbmonitor2, Microbial Culture Test Kits
FOR RESULTS IN 72 HOURS APPROXIMATELY
An invaluable test kit which enables you to easily and reliably determine the microbial quality of fuels, including aviation fuel, marine diesels, automotive diesels, gasoline and biofuels. The test is recommended for monitoring fuel storage and distribution systems and end user fuel and oil tanks for microbial growth.
The product is supplied in Packs of 5 and Packs of 50.
For product specific documents such as Product Instructions and Material Safety Data Sheets, simply click on the Product Download links below.
U.K. NATO Stock Number: 6640-99-834-3573
TRUSTED
MicrobMonitor2® enables testing in accordance with globally recognized standards, listed by industry bodies (like IATA and the aviation Joint Inspection Group), OEMs (like Boeing and Airbus), and used by many of the world’s biggest users and producers of fuel.
INNOVATIVE
Anyone can easily use the kit, by adding a small amount of fuel to the glass bottle of specially formulated testing gel.
ACCURATE
MicrobMonitor2® has been validated by independent studies (conducted by the Energy Institute), and is recognized as both an International Petroleum (IP) and ASTM standard test method (IP 613 and ASTM D7978 respectively).
DEPENDABLE
The test detects very low levels of contamination by all three types of microbes (yeast, bacteria and mould) which cause microbial contamination of fuel and oil. This enables early detection, before the contamination becomes a problem. The test will also detect spores of microbes, which are often the only indication of contamination in a system.
Product Features:
- Capable of reliably testing fuels, oils and any associated water
- Detects active bacteria, yeasts and moulds and their dormant spores
- Allows testing in accordance with IP and ASTM standard test methods (IP 613 & ASTM D7978)
- Recommended by the International Air Transport Association (IATA) for testing aviation fuel
- Listed and approved by aircraft OEMs & major oil companies
- Simple to use and requires no special equipment
- Provides clear, easy to interpret results
- Suitable for field use and/or laboratory use
- Provides fully quantifiable results comparable with standard lab testing (IP 385)
Sample Bottles Available (to be ordered seperately):
- 100ml, Sterile Sample Pot.
- 1000ml, Twin neck measuring bottle with caps. This bottle enables settled water to be separated easily for testing as it discharges from the bottom. This bottle is often used for Aviation purposes as IATA recommend taking a 1 litre sample.
LIFESPAN
- Shelf Life is 12 months from point of manufacture with no special storage conditons.
- Shelf Life is 22 months if kept refrigerated during storage.
- DO NOT ALLOW PRODUCT TO FREEZE.
Product Information| Product | Dimensions | ECHA Microbiology Part Number | Legacy Part Number/s |
| MM2, Pack of 5 Tests WITH Ancillaries (5 Syringes, 5 Sterile 10 μl Green Culture Loops (firm), 5 Bottle Labels, Instructions | 35 x 25 x 5 cm, Wt 0.95 Kg net | ECHA16/MM/02 | MM/005 |
| MM2, Pack of 50 Tests WITHOUT Ancillaries | 31 x 31 x 16 cm, Wt 6.89 Kg net | ECHA16/MM/50 | |
| MM2, Pack of 50 Tests WITH Ancillaries (50 Syringes, 50 Sterile 10 μl Green Culture Loops (firm), 5 Bottle Labels, Instructions | 31 x 31 x 16 cm, Wt 7.22 Kg net | ECHA16/MM/50/WA | |
| Twin Neck Bottle 1000ml (Pack of 5) | To Be Confirmed | ECHA16/SB/005 | |
| Twin Neck Bottle 1000ml (Pack of 10) | To Be Confirmed | ECHA16/SB/010 | |
| Sterile Sample Pot 100ml (Pack of 10) | 35 x 18 x 12 cm, Wt 0.13 Kg | ECHA11/P120/01 | |
| Sterile Sample Pot 100ml (Master Carton, Pack of 50) | 60 x 20 x 18 cm, Wt 0.65 Kg | ECHA11/P120/02 | |
| Sterile Sample Pot 100ml (Pack of 300) | 6 Packs of 60 x 20 x 18 cm, Total Wt 3.9 Kg | ECHA11/P120/03 | |
OVERSEAS SHIPPING - IMPORTANT:
Please be aware that this product contains chemical and natural ingredients and may be subject to import restrictions, permits, declarations etc. for example:
- AUSTRALIA: Australian Quarantine Inspection Service (AQIS) Permit, is required to be held by importer.
- U.S.A.: Unclarified, but some kind of permit is required, check HS Code with local customs.
Shown Below: Box Contents - 5 Test Kits, Consumables, Manual
Shown Below: Box Contents - 50 Test Kits, Consumables, Manual
Shown Below, 100ml Sampling Pot:
Shown Below, 1000ml Twin Neck Mesuring Bottle:
